Current and welding generator SENCI WD400 maximum power 25 kW 400 V welding current 400 A
- BLACK FRIDAY OFFER WHILE STOCKS LAST!

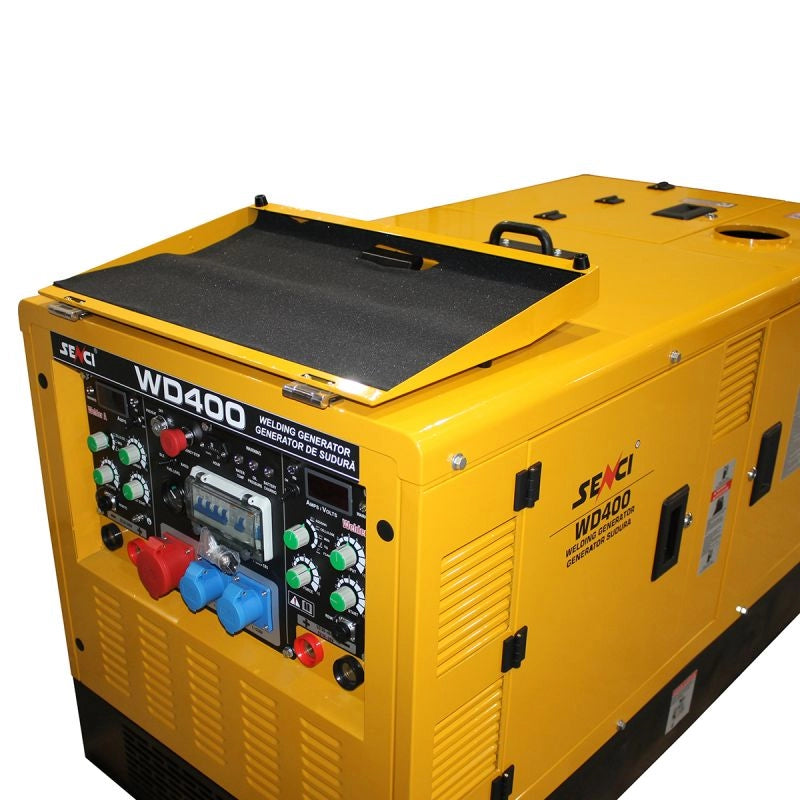

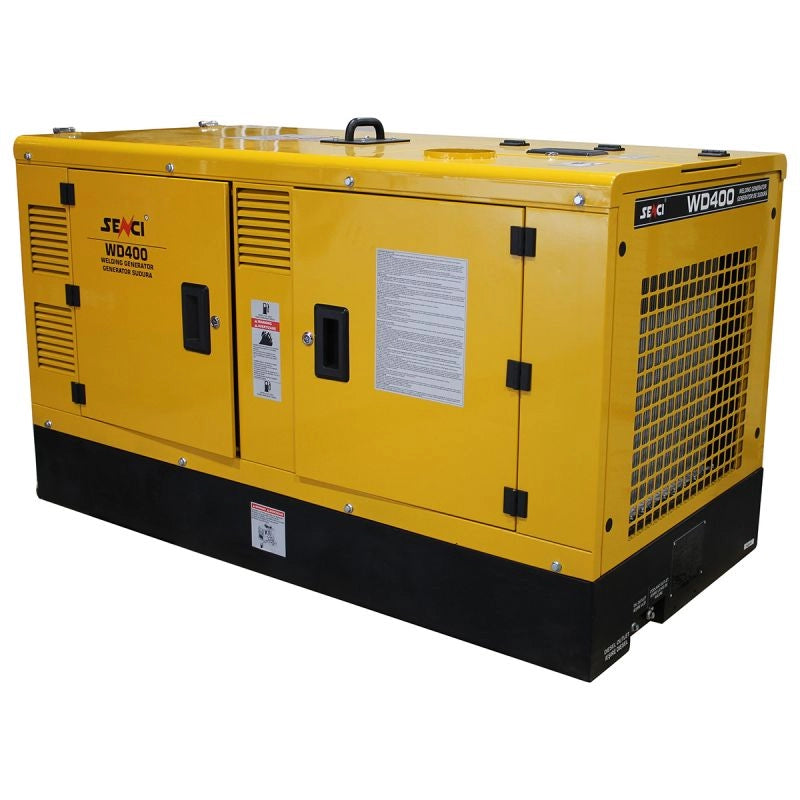

Senci WD400 Welding and Power Generator – Diesel Engine, 400V/230V and Two Welding Stations
General Description
The Senci WD400 is a multifunctional piece of equipment, combining a power generator with a diesel engine and a welding station with two welding positions, in a compact, fully enclosed unit. It is designed for applications where you need both electric current and welding, in a single system.
The standard welding type is ARC (electrode), and it can optionally be used for TIG and FCAW. According to the description, the power source can meet specific requirements for oil and gas pipeline welding, being capable of welding with low-hydrogen electrodes, rutile-cellulose, flux-cored arc welding, and argon arc welding, in gas-free arc welding mode.
For control and safety, the station includes low oil protection, a fuel level indicator, a digital multimeter (voltage, frequency, hour meter), and undervoltage protection. Engine parameters are displayed individually via gauges or warning lights.
Key Benefits
- Generator + welding station in a compact, fully enclosed unit
- Two welding stations for efficient work
- Diesel engine with parameter monitoring via instruments and warning lights
- ARC (electrode) welding as standard, with TIG and FCAW options (optional)
- Digital multimeter displaying voltage, frequency, and hour meter
- Integrated protections (low oil, undervoltage)
- IP66 sockets for auxiliary power and standard industrial socket
- 2-year warranty and 72-hour rapid service
Features and Specifications
| Feature | Detail |
|---|---|
| Product type | Welding and power generator |
| Manufacturer | Senci |
| Model | WD400 |
| Voltage | 400V / 230V |
| Frequency | 50 Hz |
| Rated / maximum power | 22.5 kW / max. 25 kW |
| Engine | Diesel |
| Protection | Low oil protection; undervoltage protection |
| Fuel indicator | Yes |
| Digital multimeter | Display: voltage, frequency, hour meter |
| Welding standard | ARC (electrode) |
| Welding options | TIG (optional), FCAW (optional) |
| Welding stations | 2 |
Auxiliary power and sockets: independent power-frequency generator with auxiliary power; 1-phase AC power 230V with two IP66 sockets (230V * 15A + 230V * 15A) 6.9 kW; three-phase AC power 400V 30 kW with a standard IP66 industrial socket.
Diesel engine: Weichai industrial engine 1500 rpm, 4 cylinders, water-cooled, with electronic speed control system.
Parameter monitoring: engine oil pressure, water temperature, battery charging voltage, diesel fuel level and other parameters are displayed individually via gauges or warning lights.
Control and performance: soft switch of the IGBT inverter and control technologies for good dynamic and welding performance, as well as a high duty cycle in the full range of voltage and current regulation.
Preset (optional): current and voltage preset function (optional), with digital display for showing preset and actual values.
Wire feeder (optional): an external source for the wire feeder can be used optionally.
How to Use the Product
- Check the oil level and diesel fuel level, then start the equipment and monitor the instruments and warning lights.
- Select ARC (electrode) welding or use the TIG/FCAW options (if available), depending on the application.
- Monitor operation using the digital multimeter (voltage, frequency, hour meter) and the engine status indicators.
Important note: due to its weight, this type of equipment cannot be shipped via express courier service. After placing the order, the transport cost will be confirmed by email and calculated based on your location.
Order now the Senci WD400 Welding and Power Generator and enjoy two welding stations and 400V/230V power supply in a compact diesel equipment.
