Hyundai three-phase diesel generator 176 kW 400V
- Tank capacity (L) 425
- Fuel Diesel
- Consumption (l/h) 43.1
- Dimensions ( L x W x H ) ( mm ) 3820x1280x1900
- Weight (kg) 3033
- Number of phases Three-phase
- Maximum power (kW) 176
- Rated power (kW) 160
- Starting system Electric (key start)

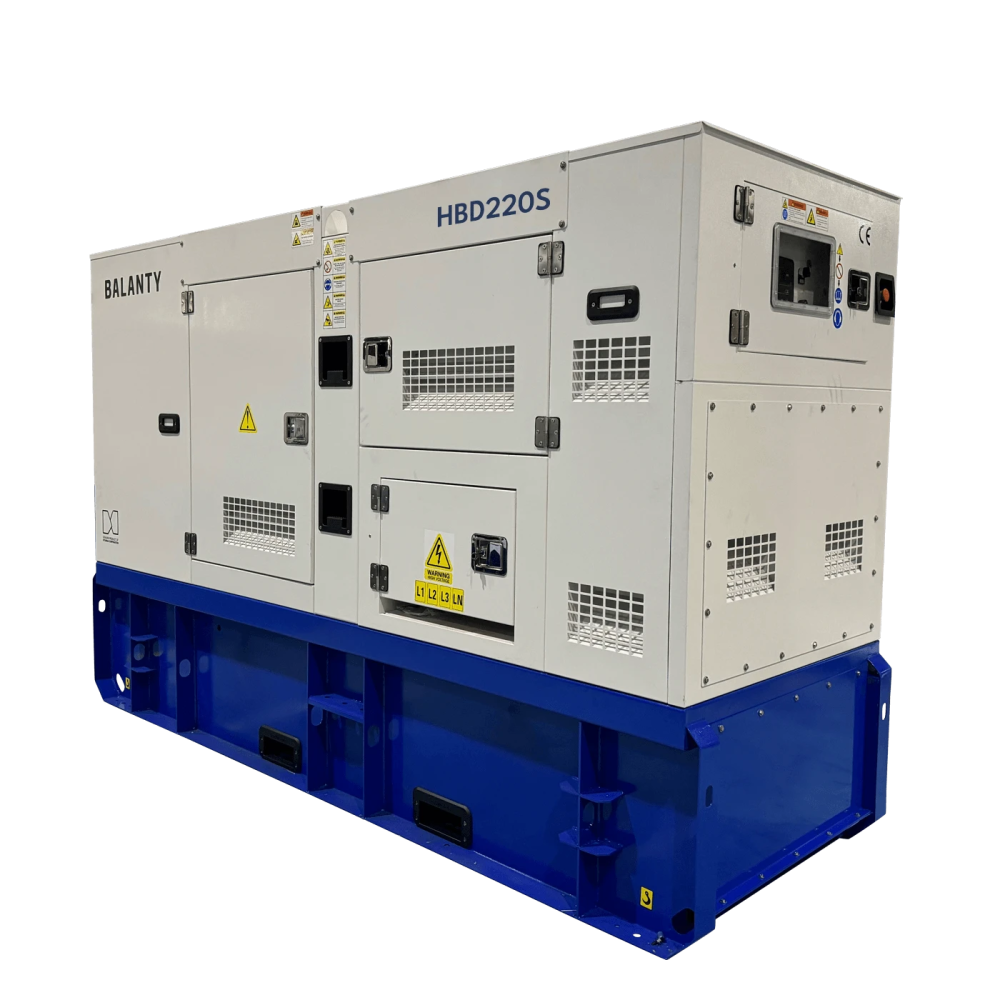

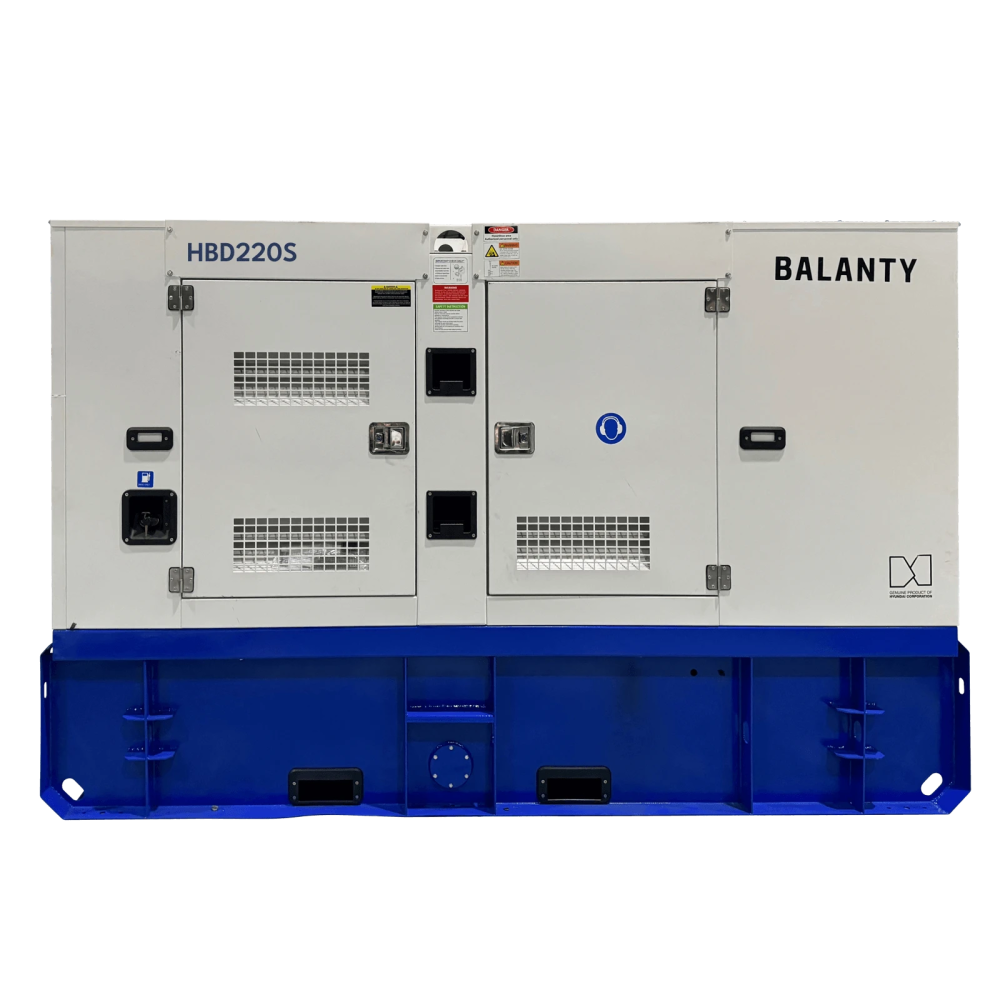

Balanty by Hyundai HBD220S Three-Phase Diesel Generator – 187 kW power, soundproofed version
General Description
The Balanty by Hyundai HBD220S three-phase diesel generator is a professional electrical power supply solution, ideal for homes, businesses, or industrial applications. With a maximum power of 187 kW, this genset ensures the safe operation of three-phase equipment even in demanding conditions.
The HBD220S model is delivered in a soundproofed version, which significantly reduces noise levels during operation, making it suitable for installation near residential or commercial buildings. The 187 kW 4-stroke diesel engine is equipped with a low oil level sensor, offering additional protection against operation in improper conditions.
The generator is powered by a 6M16G220/5 engine and is capable of producing a rated power of 200 kVA / 160 kW. It features an alternator with AVR (automatic voltage regulator) to provide stable electrical power, suitable even for sensitive electronic equipment such as televisions, PCs, and laptops.
The HBD220S model comes with electric start with included battery, a multifunctional digital display, and short-circuit protection. Although this model is supplied without an ATS (Automatic Transfer Switch), the generator can be connected to an ATS system, which ensures automatic starting upon power outage and safe shutdown when power returns.
Due to its 1500 rpm speed and robust construction, diesel generators in this class are ideal for both static installation, daily use as a primary source, and as a backup generator. 1500 rpm engines, water-cooled and less stressed than 3000 rpm engines, have a longer lifespan and are suitable for intensive use.
Main Benefits
- High three-phase power – maximum 187 kW, for powering industrial and commercial equipment.
- Soundproofed version – reduced noise level, ideal for installation near buildings.
- Stable power due to AVR alternator and short-circuit protection.
- Engine protection via low oil level sensor.
- Electric start with included battery, for quick and convenient operation.
- ATS compatible – possibility of connecting to an automatic system for automatic start/stop.
- Ideal for primary or backup source – 1500 rpm, extended lifespan.
- Multifunctional digital display for easy monitoring of operating parameters.
Features and Specifications
| Feature | Detail |
|---|---|
| Product type | Three-phase diesel generator |
| Brand | Balanty by Hyundai |
| Model | HBD220S (ATS not included) |
| Phases | Three-phase |
| Maximum generator power | 187 kW |
| Rated power | 200 kVA / 160 kW |
| Engine | Diesel 4-stroke 6M16G220/5, 187 kW |
| Engine speed | 1500 rpm |
| Execution | Soundproofed version |
| Engine protection | Low oil level sensor |
| Voltage regulation system | Alternator with AVR (automatic voltage regulator) |
| Electrical protections | Short-circuit protection |
| Starting | Electric start with included battery |
| Control | Multifunctional digital display |
| ATS compatibility | Can be connected to an ATS system (optional automation) |
| Recommended use | Static installation – daily primary source or backup generator |
| Warranty for individuals | 2 years |
| Warranty for legal entities | 1 year |
How to use the product
The Balanty by Hyundai HBD220S three-phase generator is installed statically, in its soundproofed version, on a stable surface, outdoors or in an appropriate technical space. It is recommended to connect it to the building's electrical panel via a licensed electrician, observing current safety regulations.
The model can be started with a key through the electric start system, using the included battery. For a higher level of automation, the generator can be connected to an ATS module (Automatic Transfer Switch) – optional – which automatically starts the generator when the mains power fails and stops it when the power returns.
It is ideal for powering three-phase equipment, sensitive electronic devices, and critical loads (servers, refrigeration units, etc.), especially in situations where continuity of power supply is essential.
Frequently Asked Questions
Does the HBD220S generator come with ATS included?
No, this HBD220S model is supplied without ATS (automation). However, the generator is compatible and can be connected to an optional ATS system for automatic start and stop during power failure/return.
Can it power sensitive electronic equipment?
Yes, thanks to the alternator with AVR, the HBD220S generator produces stabilized power, suitable for powering sensitive electronic equipment such as televisions, PCs, and laptops.
Is it suitable as a primary power source?
Yes, 1500 rpm diesel generators, like the HBD220S, are ideal for both daily use as a primary source and as a backup generator. Their engines run slower and are less stressed, which extends their lifespan.
What warranty is offered?
The HBD220S three-phase diesel generator comes with a 2-year warranty for individuals and a 1-year warranty for legal entities, according to recommended usage and maintenance conditions.
Order now the Balanty by Hyundai HBD220S three-phase diesel generator and enjoy safe and stable power and long-term reliable operation for your home or business.
