PFT LOTUS XS Mixer

Disponibil: limited stock

19.240 00 Lei

Cantitate

Beneficii

Electric motor: 230 V, 50 Hz, 16 A,
Power: 1.3 kW, 280 rpm
Mixing capacity: approx. 20 l/min (depending on the quality and consistency of the mortar)
Adjustable filling height: 975 - 1115 mm
Robust construction

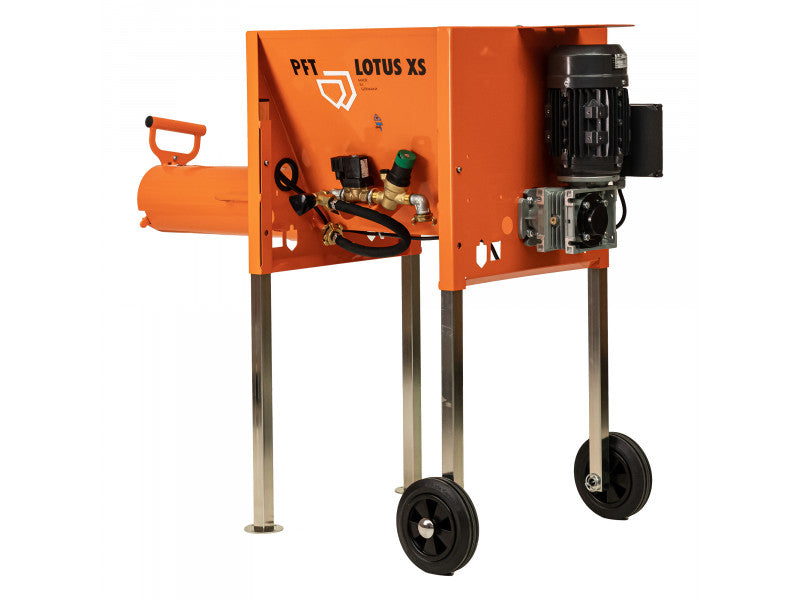

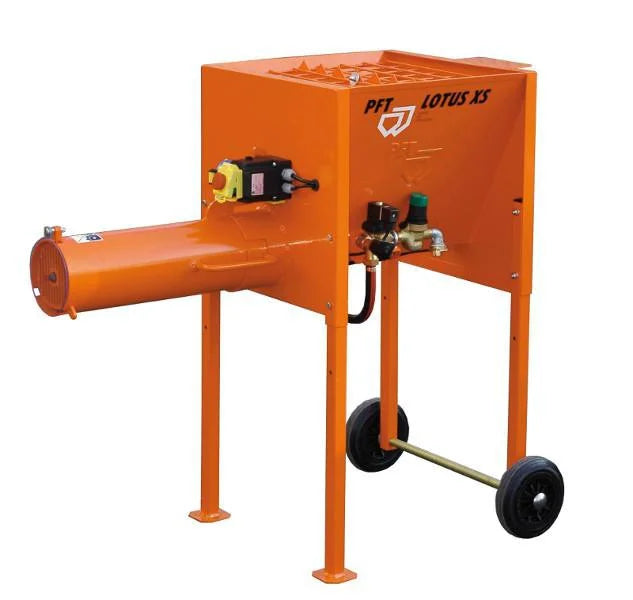

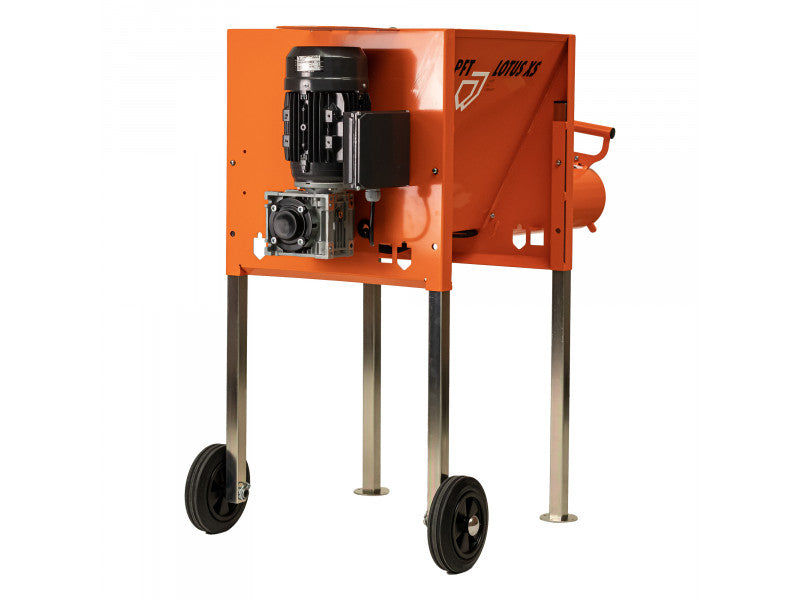

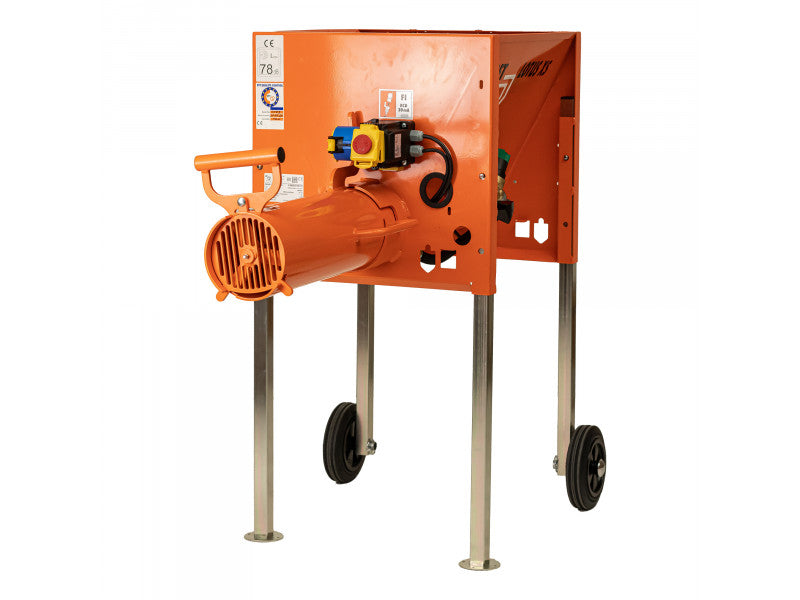

PFT Compact Horizontal Shaft Mixer – ideal for small jobs, easy to transport

This compact horizontal shaft mixer is PFT's smallest and most affordable mixer, designed specifically for small jobs and quick operations on site.

It mixes dry cement-based mortars with a maximum grain size of 4 mm, providing a practical solution for achieving a consistent mix.

It is equipped with a 230 V electric motor and is easy to set up: connect it to water (pressure 2.5 bar) and to the power source (230 V, 16 A).

Feature	Detail
Type	Compact horizontal shaft mixer
Use	Small jobs
Materials	Dry cement-based mortars
Maximum grain size	4 mm
Electric motor	230 V
Drive motor (kW)	1.3
Voltage (V/Hz)	230/50
Water connection	2.5 bar pressure
Water connection	3/4"
Power supply	230 V, 16 A
Tank capacity (liters)	50
Mixing power (l/min)	Approx. 20
Dimensions H x W x D (cm)	122 x 65 x 88
Weight (kg)	65

Connect the mixer to water, ensuring a pressure of 2.5 bar and using the 3/4" water connection.
Connect to the 230 V power source, with 16 A supply.
Add the dry cement-based mortar (maximum grain size 4 mm) and start mixing.

Order now the PFT compact horizontal shaft mixer and enjoy quick setup and easy transport for small jobs.

Electric motor: 230 V, 50 Hz, 16 A

Power: 1.3 kW, 280 rpm

Mixing capacity: approx. 20 l/min (depending on mortar quality and consistency)

Adjustable filling height: 975 1115 mm

Robust construction
