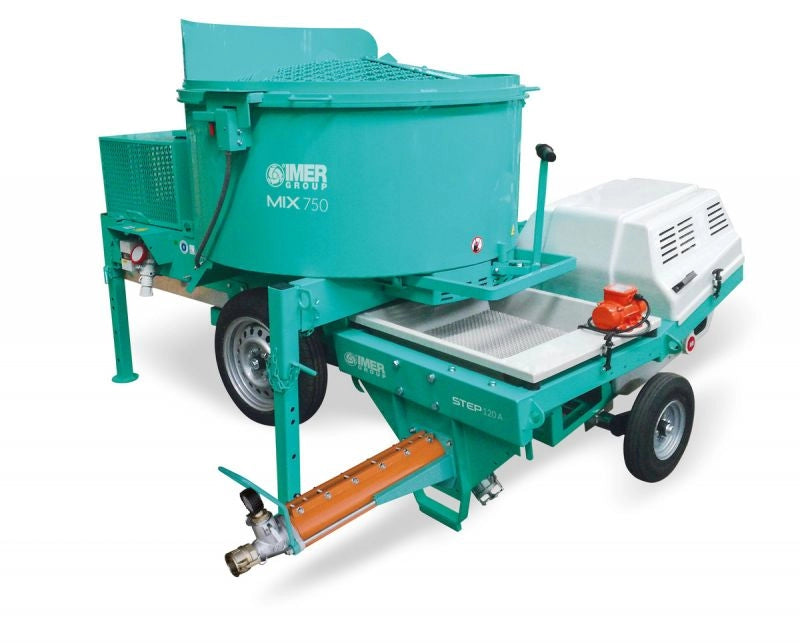

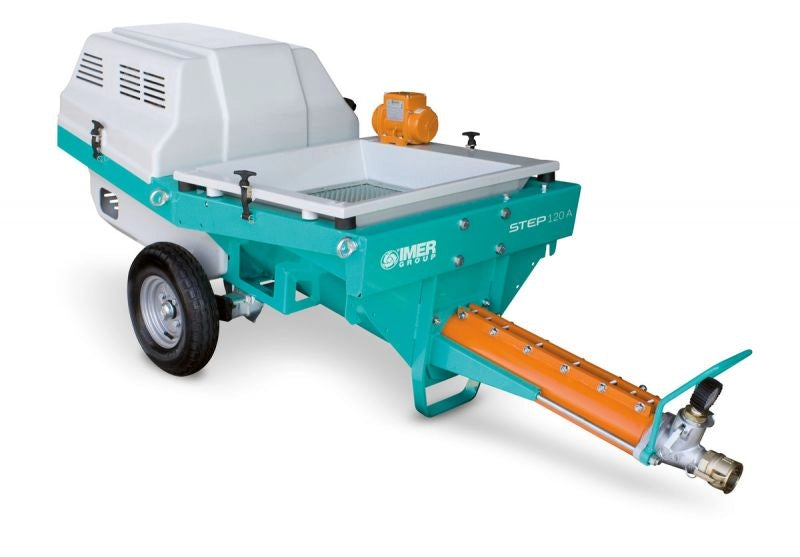

Digging and mortar pump Imer STEP 120A 400V flow rate 7 mc/h - for liquid digger

Disponibil: in stock

57.200 00 Lei

Cantitate

64.948 00 Lei

Beneficii

Fully equipped ready to work
Specialized technical consultancy
FREE commissioning
FREE operator training at your site
Quality guarantee
Professional equipment
Free shipping

Pump for screed and wet mortars – high flow and constant pumping with screw system

General description

This equipment is designed for transporting and pumping screed and wet mortars, whether traditionally prepared or delivered ready-mixed by concrete mixer truck.

Thanks to its three-phase motor, the pump offers a high flow rate of material, making it suitable for jobs requiring fast and efficient application.

With the associated kit, the machine allows for shotcreting materials at controlled pressure, useful in renovation work, joint repairs, and areas with segregation.

Screw pumping systems ensure a constant material flow, facilitating work execution and offering multiple uses for the same machine.

Key benefits

Transport and pumping for screed and wet mortars
High flow rate due to the three-phase electric motor
Constant flow rate via screw pumping system
Shotcreting at controlled pressure with the associated kit
Suitable for renovations, joint repairs, and segregation
Remote control via cable (37 m) for easy operation
Easy transport due to pneumatic wheels
Increased safety: the machine does not start if the vibrating screen is not correctly mounted

Features and specifications

Feature	Detail
Motor type	Three-phase electric motor
Motor power	7.5 kW
Pumping system	Screw pump for transporting wet or pre-mixed materials
Control panel	Yes
Remote control	Via cable, 37 m
Material hose	Diameter 50 mm, length 30 m
Material pressure gauge	Yes
Electrical connection	Cable for 400V, 32A connection
Vibrating screen	Mounted on the loading hopper
Mobility	Pneumatic wheels for easy transport
Screw accessories	Accessory box (rotor + stator) type 60.12
Operator safety system	The machine does not start if the vibrating screen is not correctly mounted

Standard equipment

7.5 kW three-phase electric motor
Screw pump for transporting wet or pre-mixed materials
Control panel
Remote control via 37 m cable
Material hose diameter 50 mm, length 30 m
Material pressure gauge
Electric cable for 400V, 32A connection
Vibrating screen mounted on the loading hopper
Pneumatic wheels for easy transport
Screw accessory box (rotor + stator) type 60.12

How to use the product

Load the material into the machine's hopper and ensure the vibrating screen is correctly mounted.
Connect the machine to the 400V, 32A electrical supply and control its operation from the control panel or via remote control (37 m).
Pump the material through the 50 mm (30 m) hose and monitor the pressure using the pressure gauge; for shotcreting, use the associated kit at controlled pressure.

Order now this pump for screed and wet mortars and enjoy high flow and constant pumping with a screw system.

Maximum particle size 10 mm

Material tank capacity 120 l

Maximum pumping height 30 m

Maximum pumping distance 60 m

Loading height 435 mm

Material flow 7 m3/h

Motor type Electric

Engine power 7.5 kW

Voltage 400 / 50 V / Hz

Equipment weight 280 kg

Dimensions 2320x820x960 L x W x H (mm)
