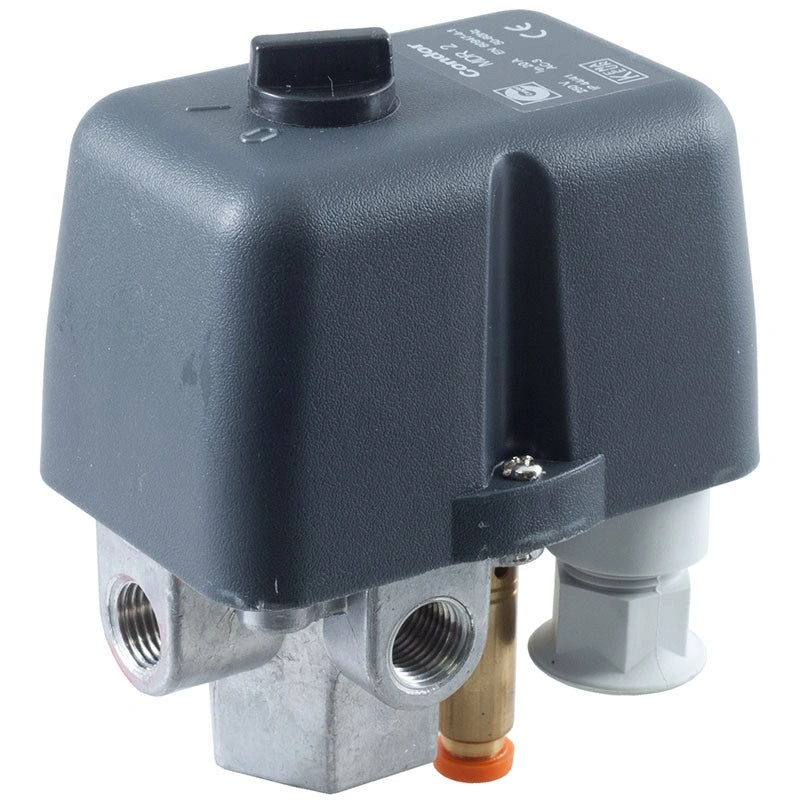

Single-phase pressure switch Fiac Condor Mdr2, 16A
Condor MDR2 Single-Phase Pressure Switch (code 212188) – Automatic Pressure Control, with Thermal Protection and Unloader Valve
General Description
The Condor MDR2 single-phase pressure switch (code 212188), with unloader valve, is designed for automatic compressor control, stopping and restarting the motor based on the system pressure.
It features thermal overload protection for increased operational safety. The robust construction includes a die-cast aluminum flange, and the product is made in Germany and complies with EN 60947.
It has an AEV 2S quick coupling for a 6 mm hose and a rotary on/off switch (I / 0) for convenient operation.
Key Benefits
- Automatic control of the compressor: stops at maximum pressure and restarts at the set minimum threshold.
- Thermal overload protection for safe use.
- Unloader valve for stable operation.
- AEV 2S quick coupling for a 6 mm hose, practical for connection.
- Lifespan of over 100,000 cycles and support for a maximum of 120 on/off cycles per hour.

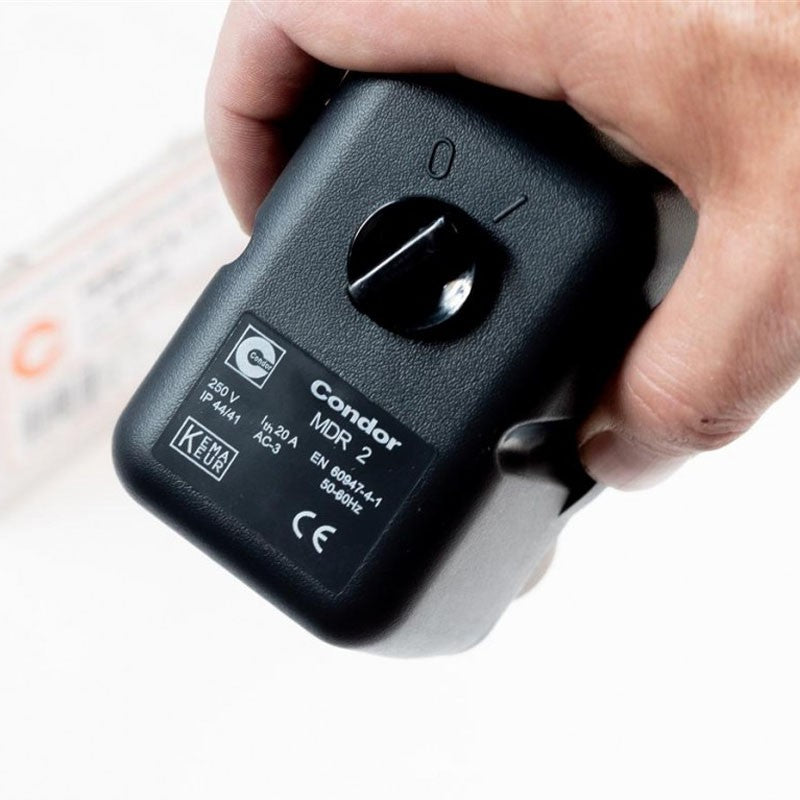

- Rotary switch (I / 0) for quick start and stop.
- Solid construction, made in Germany, compliant with EN 60947.
Features and Specifications
The factory settings for this pressure switch are: ΔP = 2 bar, Pmax = 10 bar, Pmin = 8 bar. When the pressure reaches 10 bar, the compressor stops, and when the pressure drops to 8 bar, the compressor restarts. Both the maximum pressure and the pressure difference can be adjusted.
The pressure switch supports a maximum of 120 on/off cycles per hour and has a lifespan of over 100,000 cycles.
| Feature | Detail |
|---|---|
| Model | Condor MDR2 |
| Product Code | 212188 |
| Type | Single-phase pressure switch, with unloader valve |
| Maximum Pressure | 12 bar |
| Factory Settings | ΔP = 2 bar; Pmax = 10 bar; Pmin = 8 bar |
| Amperage | 16 A |
| Compatible Motor Power | max. 2.25 kW (3 HP) |
| Switch | Rotary on/off (I / 0) |

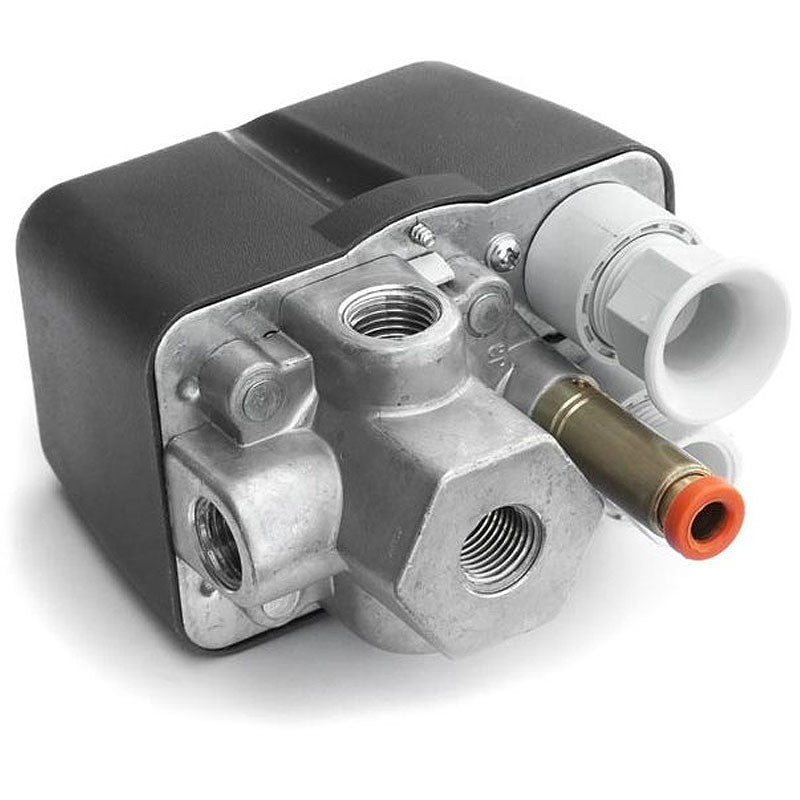

| Connections | 4 x 1/4" female connections |
| Quick Coupling | AEV 2S for 6 mm hose |
| Protection Class | IP44 |
| Operating Temperature | -5...+80 °C |
| Weight | 369 g |
| Standard | EN 60947 |
| Origin | Made in Germany |
| Construction | Die-cast aluminum flange |
| Protection | Thermal overload protection |
How to Use the Product
- Mount the pressure switch in the system and connect the 4 x 1/4" female connections according to the compressor configuration.
- Connect the 6 mm hose to the AEV 2S quick coupling, if required for the application.
- Check the factory settings (Pmax/Pmin/ΔP) and adjust the maximum pressure and pressure difference as needed.
Order now the Condor MDR2 Single-Phase Pressure Switch (code 212188) and enjoy automatic pressure control and thermal overload protection.
