Fiac Pumping Group Type Ab998 for Compressor
Fiac Pumping Group Type Ab998 for Compressor
Fiac Pumping Group Type Ab998 for Compressor
Fiac Pumping Group Type Ab998 for Compressor
Fiac Pumping Group Type Ab998 for Compressor
Fiac Pumping Group Type Ab998 for Compressor
FIAC

Fiac Pumping Group Type Ab998 for Compressor

Product SKU: AB998
Greutate 37 kg
euplatesc dekstop
Available:
6.100,00 lei
euplatesc mobile
  • Description

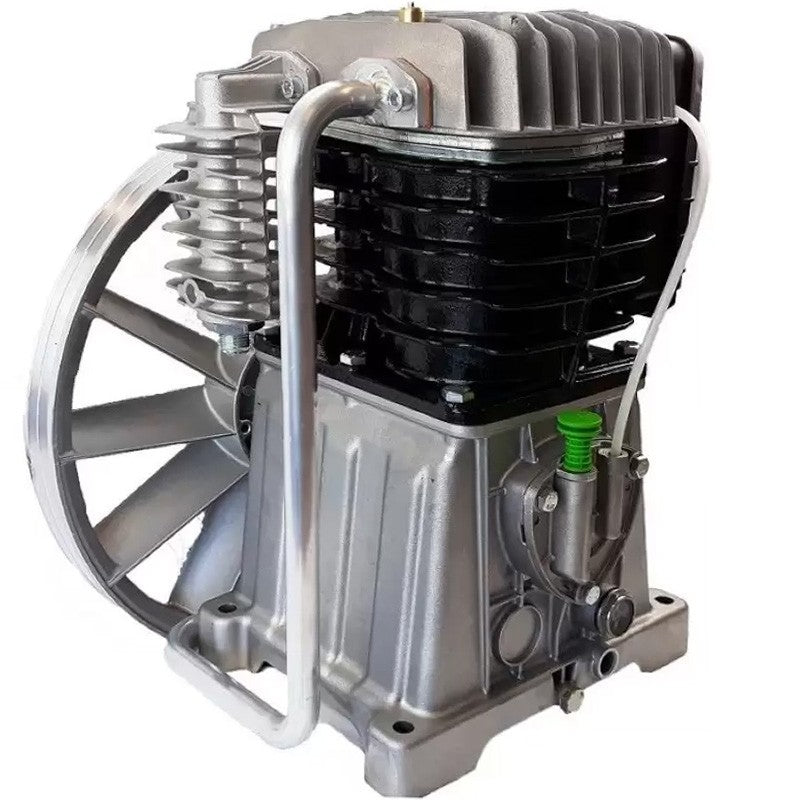

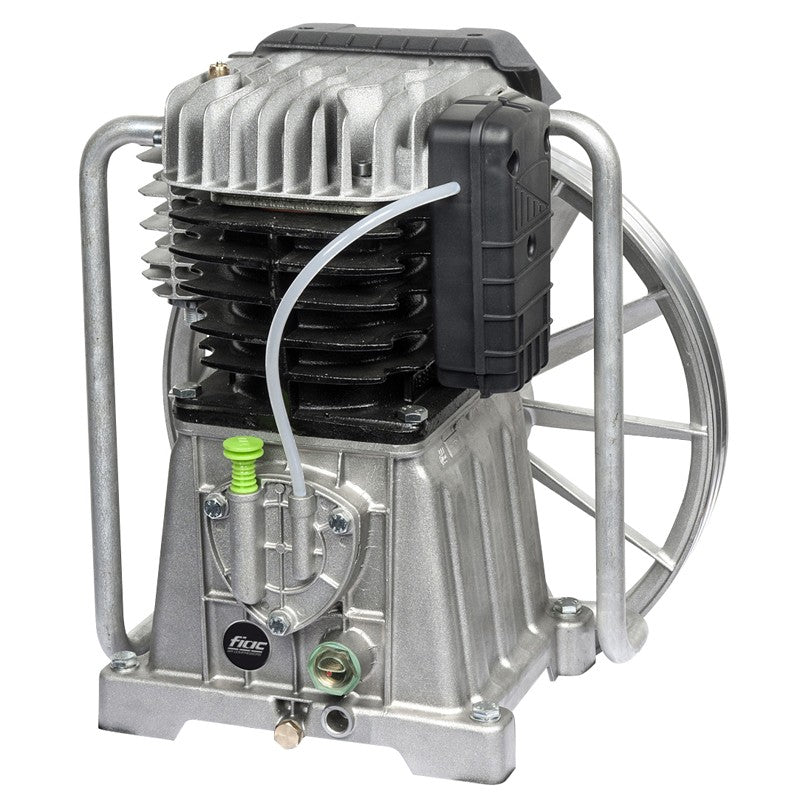

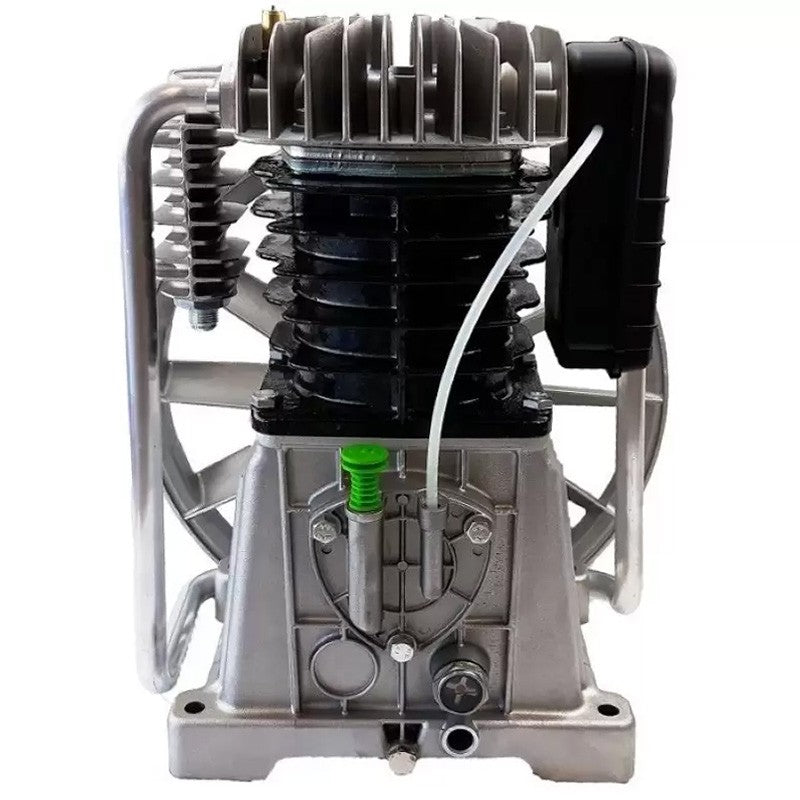

Fiac AB998 is a professional pump with two pistons driven by a trapezoidal belt.

  • The pump is delivered with a pulley (430mm x 2A) mounted. The pump has an improved efficiency, a robust construction.

  • The oil sump and cylinder head are made of aluminum, the cylinders are made of cast iron with cooling fins. The pump pistons are made of INOX, and are equipped with 3 segments.

  • Lubrication is done with oil (the pump is delivered with synthetic oil in the bathroom). The valve plate is made of cast iron, with INOX valves.

  • The pump is provided with an intermediate cooler and a final cooler.

  • Working at a lower temperature than pumps with a single compression stage, this pump has not only better efficiency but also increased reliability and a longer life.

  • The oil sump and cylinder head are made of aluminum, the cylinders are made of cast iron with cooling fins. The valves are made of stainless steel, pistons equipped with 3 segments.


It is delivered loaded with synthetic oil in the oil pan.

  • Maximum pressure: 10 bar

  • Intake air flow rate: 1070 l/min (64.2 m³/h)

  • Engine power required: 7.5 kW / 10 HP

  • Speed: 1270 rpm

  • Number of cylinders: 2

  • Number of compression stages: 2

  • Lubrication: with oil

  • Pulley: 430mm x 2A (two belt channels)

  • Drive: V-belt

  • Dimensions: 430 x 350 x 510mm (with pulley)

  • Weight: 37 kg

Weight 37 kg
Dimensions 40 × 40 × 45 cm
Brand FIAC
