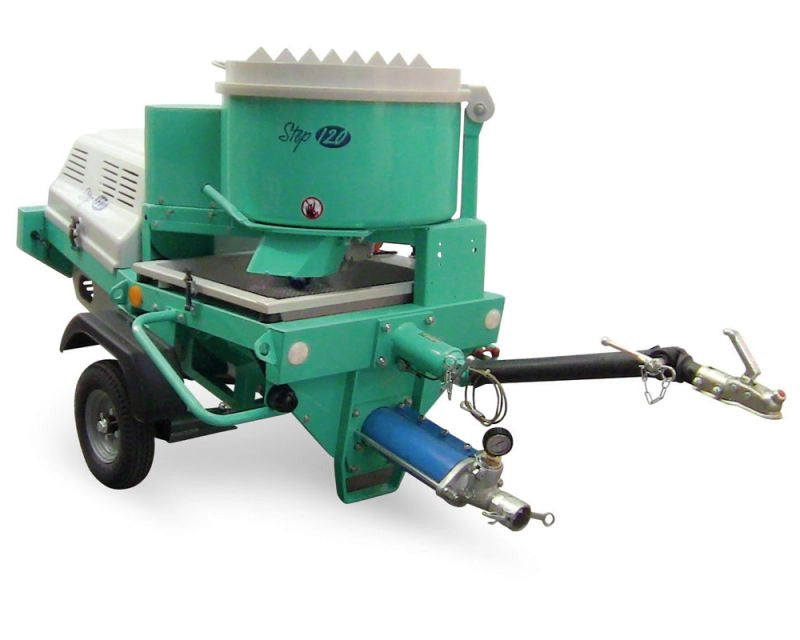

Plaster pump Imer Step 120GR+M 400V flow rate 17-35 l/min Mixer 120l+towing kit included
Disponibil:
in stock
71.040
00
Lei
Cantitate
Beneficii
- Fully equipped machine, ready to work, includes:
- Electric motor 400V-50Hz, power 4.8 KW,
- Diaphragm compressor 310L/min,
- Vibrating screen,
- Car towing kit,
- Planetary mixer with bottom discharge,
- 30m material hose diam. 35mm,
- 31m air hose diam. 13mm,
- Plastering lance
Description
Step 120 GR-M single-phase 400V-50Hz - with mixer and towable, max material flow 25 l/min., pumping distance horizontal/vertical 60/30 m
Fully equipped, ready-to-work machine, includes:
400V-50Hz electric motor, power 4.8 KW,
Diaphragm compressor 310L/min,
Vibrating screen
Car towing kit,

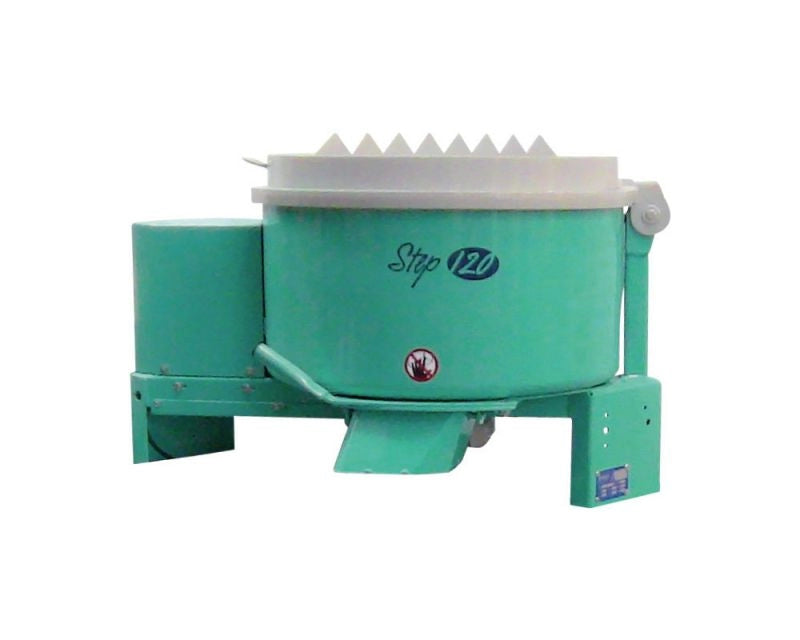

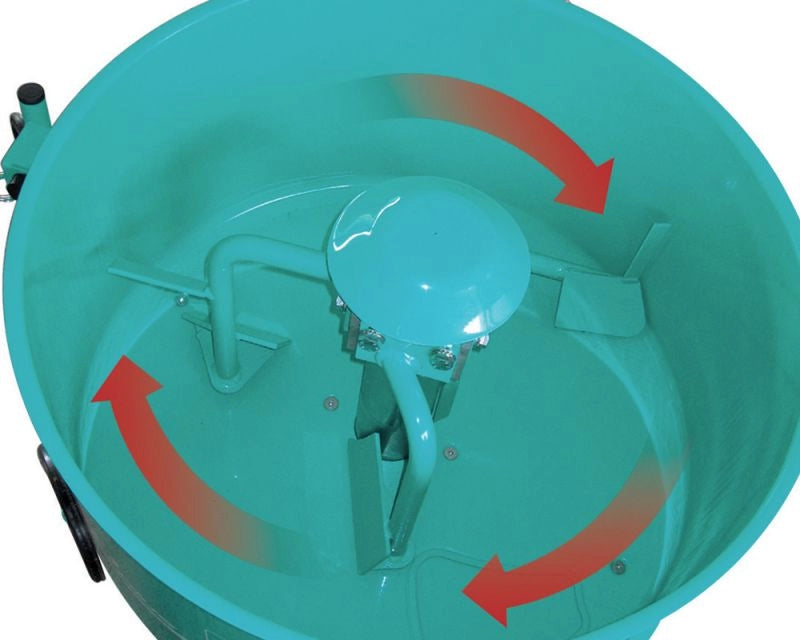

Planetary mixer with bottom discharge
30m material hose diam. 35mm,
31m air hose diam. 13mm,
Plastering lance

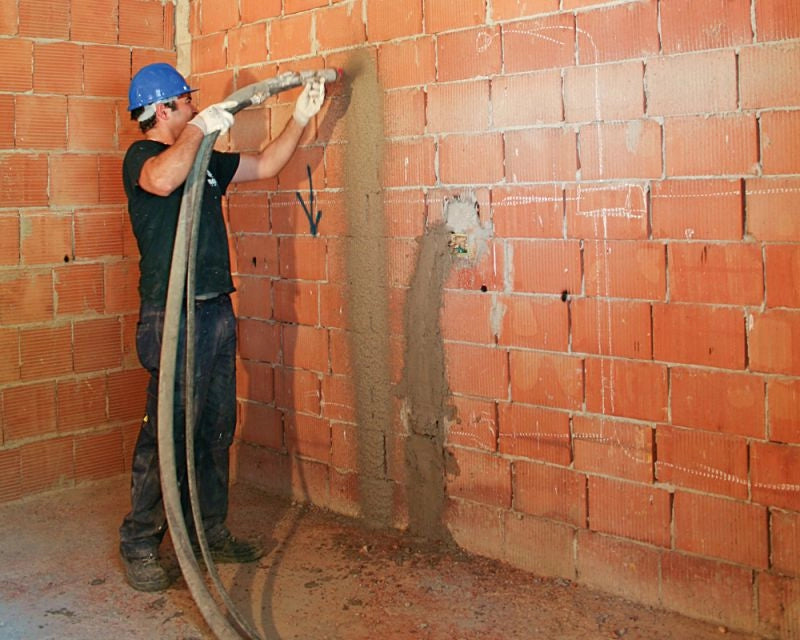

The plaster pump can be used both for mechanized plastering, based on traditional material (sand in combination with cement, lime, Multibat, Tenco, etc.), and for plastering based on bagged mortars/finishing plasters (premixed).
All materials introduced into this machine require mixing with water before being introduced into the machine's hopper.
These can be mixed in a concrete mixer or in the optional mixer that can be mounted above the pump's loading hopper.
Standard equipment:
Electric motor and diaphragm compressor
Screw pump for conveying traditional plaster
Lance for applying classic or premixed material
Control panel and preparation for remote control
Can regulate material flow by simply touching the control panel and 30m (20+10) hose with quick couplings diam 13 mm for air
Vibrating loading screen
Accessory box Auger (material transfer system)
Characteristics
Maximum granulometry 8 mm
Material tank capacity 120 l
Maximum pumping distance 60 m
Maximum pumping height 30 m
Loading height 435 mm
Loading height with mixer 950 mm
Material flow rate 17 - 35 l/min
Compressor flow rate 310 l/min
Motor type Electric
Voltage 400 / 50 V / Hz
Electric motor power 4.8 kW
Dimensions 2040 x 820 x 1275 L x W x H (mm)
Maximum grain size 8 mm
Material hopper capacity 120 l
Maximum pumping distance 60 m
Maximum pumping height 30 m
Loading height 435 mm
Loading height with mixer 950 mm
Material flow rate 17 35 l/min
Compressor flow rate 310 l/min
Motor type Electric
Voltage 400 / 50 V / Hz
Electric motor power 4.8 kW
Dimensions 2040 x 820 x 1275 L x W x H (mm)
