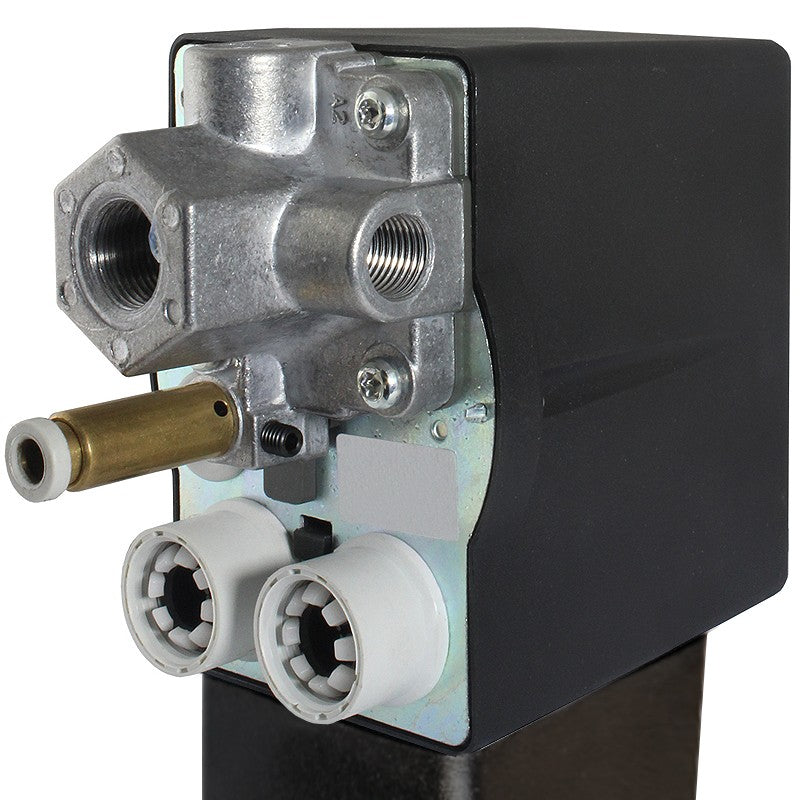

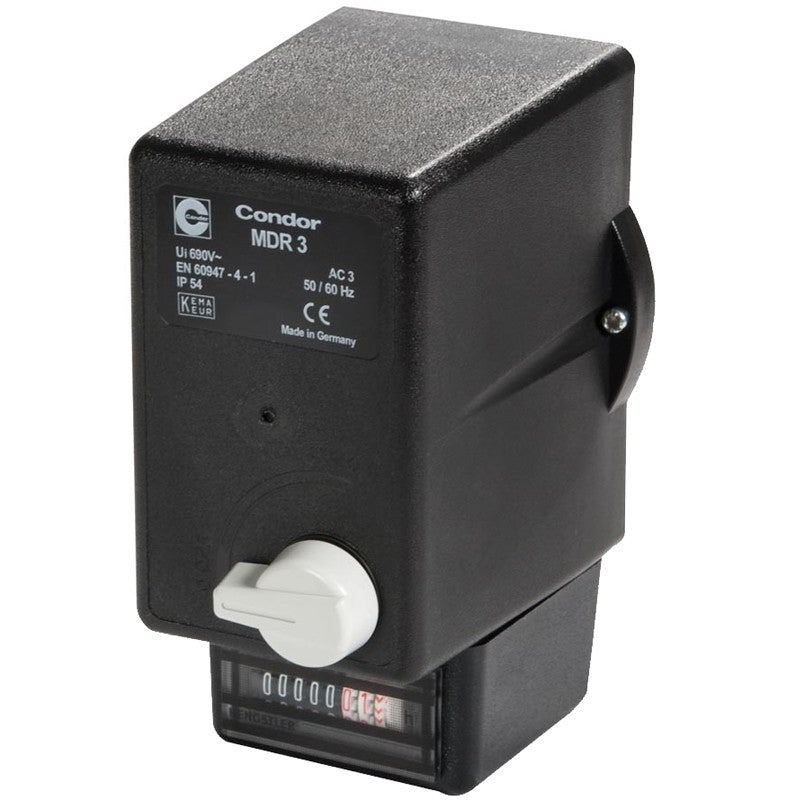

Three-phase pressure switch Fiac Condor Mdr3 10A with Hour Meter

FIAC

Three-phase pressure switch Fiac Condor Mdr3 10A with Hour Meter

Name: Three-phase pressure switch Fiac Condor Mdr3 10A with Hour Meter
Brand: FIAC
SKU: 1127250117
Price: 620.0 RON
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 1127250117

Greutate 1 kg

Available:

620,00 lei

Description
Caracteristici

Three-phase pressure switch Fiac Condor MDR3/11 with start valve.

Provided with thermal overload protection

With operating hours counter

Die-cast aluminum flange

Made in Germany

Corresponds to EN 60947

The factory settings for this pressure switch are: ∆P = 2 bar; Pmax = 10 bar; Pmin = 8 bar - that is, when the pressure reaches 10 bar, the compressor stops, respectively, when the pressure drops to 8 bar, the compressor starts again. Both the maximum pressure and the pressure difference can be adjusted.

Voltage: 380V

Maximum pressure: 11 bar

Amperage: 6.3 - 10 A

For engines of: 2.25 - 4 kW (3 - 5.5 HP)

3 1/4" female connections + 1 3/8" female connection

Weight 1 kg

Dimensions 15 × 15 × 15 cm

Brand FIAC
