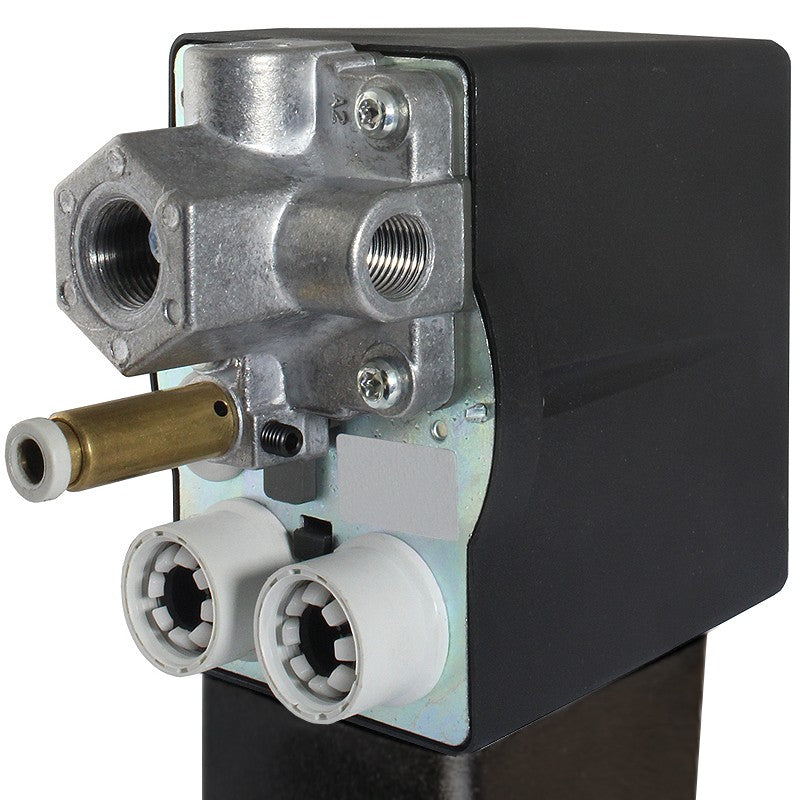

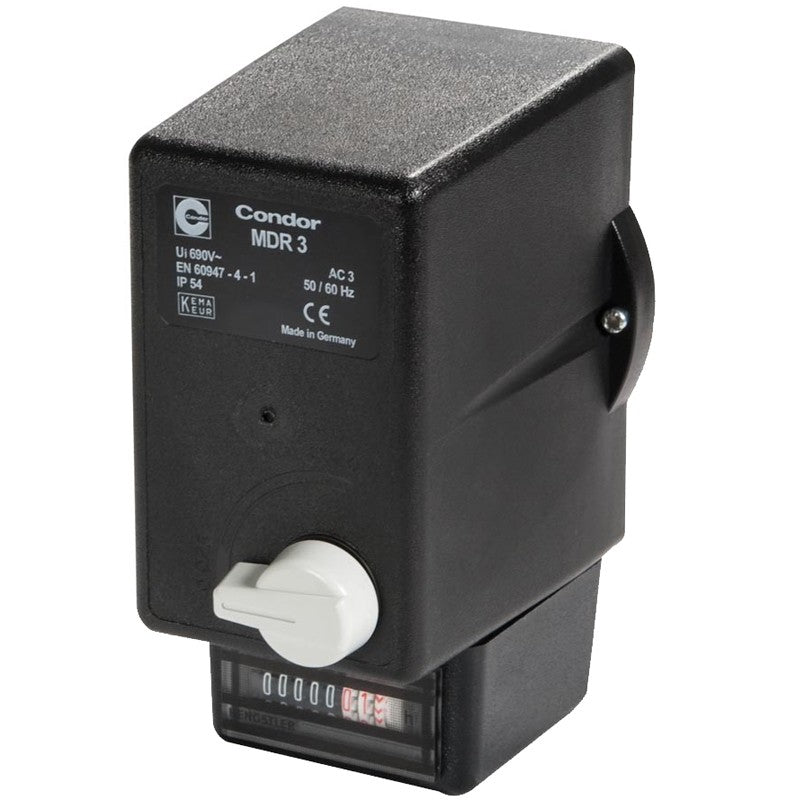

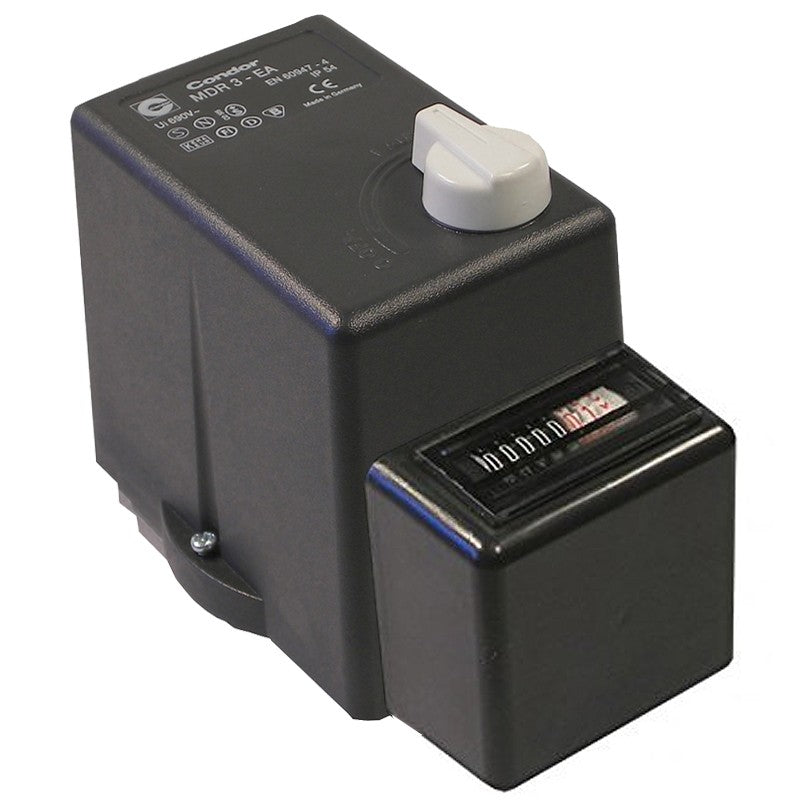

Three-phase pressure switch Fiac Condor Mdr3 6.3A with Hour Meter

FIAC

Three-phase pressure switch Fiac Condor Mdr3 6.3A with Hour Meter

Name: Three-phase pressure switch Fiac Condor Mdr3 6.3A with Hour Meter
Brand: FIAC
SKU: 1127250116
Price: 560.0 RON
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 1127250116

Greutate 1 kg

Available:

560,00 lei

Description
Caracteristici

Three-phase pressure switch Condor MDR3/11 with start valve.

Provided with thermal overload protection

With operating hours counter

Die-cast aluminum flange

Made in Germany

Corresponds to EN 60947

The factory settings for this pressure switch are: ∆P = 2 bar; Pmax = 10 bar; Pmin = 8 bar - that is, when the pressure reaches 10 bar, the compressor stops,

respectively, when the pressure drops to 8 bars, the compressor starts again. Both the maximum pressure and the pressure difference can be adjusted.

Voltage: 380 V

Pressure: max. 11 bars

Amperage: 4 - 6.3A

For engines of: 1.5 - 2.25 kW (2 - 3 HP)

3 1/4" female connections + 1 3/8" female connection

Weight 1 kg

Dimensions 15 × 15 × 15 cm
