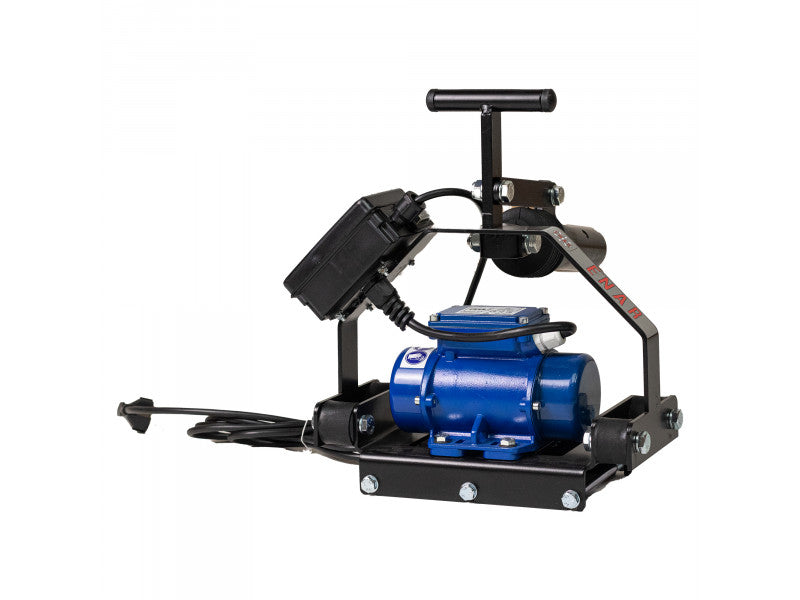

Vibrating screed motor unit ENAR QZE (electric)

Disponibil: in stock

3.432 00 Lei

Cantitate

Beneficii

Net weight (kg):10.5
Gross weight (kg):12
Electric motor: 230
Length (m):2 - 2,5 - 3 - 4
Voltage (V/Hz):230/50
Frequency (vib/min):3000
Centrifugal force (N):700
Packaging:cardboard box
Power (W):125

ENAR QZE electric vibrating screed – efficient compaction and rapid leveling

General Description

With the help of the concrete vibrating screed, durable concrete surfaces can be efficiently and quickly created through scraping, compaction, and proper leveling.

For smaller surfaces and reduced concrete thicknesses, the ENAR QZE electric concrete screed is ideal: it is lightweight, easy to use, and suitable for rapid scraping of fresh concrete and initial leveling.

The motor unit is easy to assemble and disassemble, and the working direction can be easily adjusted back and forth for a faster work pace. The screeding beam is an optional accessory.

Key Benefits

Efficient scraping and compaction for durable concrete surfaces
Suitable for smaller concrete surfaces and thicknesses
125 W electric motor (230 V) for high efficiency
High vibration frequency and strong compaction force
Easy adjustment of working direction back and forth by rotating the handle
Symmetric beam can be inverted for wear on both sides
Lightweight, easy to handle and transport
Ergonomic and articulated head for comfortable height adjustment of the handle

Features and Specifications

Feature	Detail
Product	ENAR QZE electric vibrating screed
Application	Scraping, compaction, and leveling concrete surfaces
Recommended for	Smaller concrete surfaces and thicknesses; fresh concrete and initial leveling
Motor	Electric
Motor Power	125 W
Power Supply	230 V
Performance	High vibration frequency and high compaction force

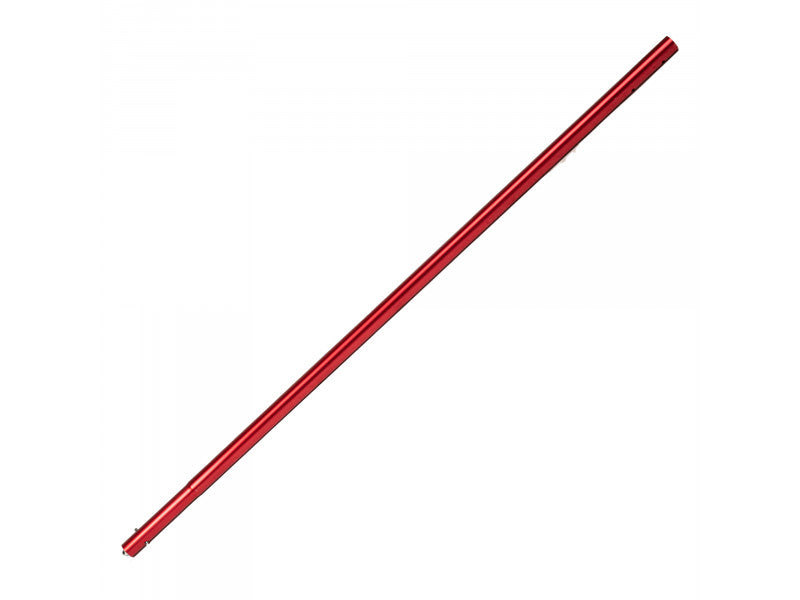

Beam (optional accessory)	Aluminum, curved profile, good sliding/floating; universal for QZ models
Beam Lengths (optional accessory)	2 m / 2.5 m / 3 m / 4 m
Mounting	Easy disassembly and installation of the motor unit
Symmetric Beam	Can be mounted upside down for wear on the other side
Working Direction Adjustment	By rotating the handle (back and forth)
Handle	Ergonomic, articulated head; comfortable height adjustment
Accessories	Handle included with the screeding beam
Maneuverability	Lightweight, easy to handle and transport

How to use the product

Mount the ENAR QZE motor unit onto the vibrating screed system, using the easy disassembly and installation.
Use the screed for scraping and compacting fresh concrete, achieving proper leveling.
Rotate the handle to adjust the working direction back and forth for faster work.

Order now the ENAR QZE electric vibrating screed and enjoy efficient compaction and rapid leveling of fresh concrete.

Net weight (kg):10.5

Gross weight (kg):12

Electric motor: 230

Length (m):2 2.5 - 3 - 4

Voltage (V/Hz):230/50

Frequency (vib/min):3000

Centrifugal force (N):700

Packaging:cardboard box

Power (W):125
