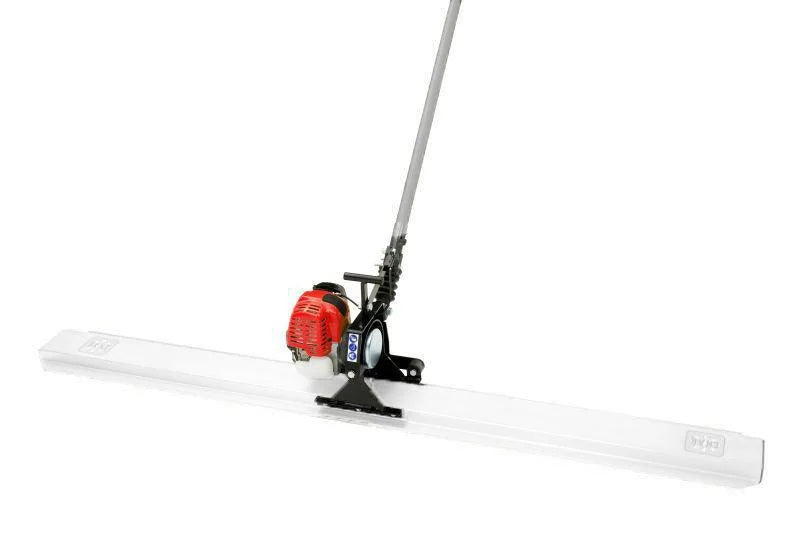

Vibrating Screed Engine Unit ENAR QZGH (HONDA GX25)

Disponibil: in stock

4.264 00 Lei

Cantitate

Beneficii

THIS PRODUCT IS NOT SHIPPED COD!

ENAR QZH Screed Motor – 9000 VPM and Easy Handling

General Description

The ENAR QZH screed motor is designed for use with a vibrating screed board to create durable and level concrete surfaces through efficient screeding and compaction.

For smaller surfaces and reduced concrete thicknesses, the ENAR QZH is an ideal choice: it is lightweight, easy to handle, and suitable for quick work with fresh concrete and rough screeding.

It is equipped with a professional HONDA engine, renowned for quality and durability in difficult conditions, thanks to its high-quality design and components.

The screed beam can be ordered separately as an accessory, and the mounting and dismounting of the motor unit are simple.

Main Benefits

Helps to quickly achieve durable and level concrete surfaces (smoothed and compacted)
Ideal for smaller surfaces and reduced concrete thicknesses
Professional HONDA GX25 engine for performance and reliability
High frequency: 9000 vibrations per minute
Working direction easily adjusted back and forth by rotating the handle
Easy mounting and dismounting of the motor unit
Ergonomic and articulated handle for comfort at different heights
Easy to handle and transport

Features and Specifications

Feature	Detail
Product	ENAR QZH screed motor
Application	Vibrating screed board / screed beams
Recommended for	Smaller surfaces and reduced concrete thicknesses; fresh concrete and rough screeding
Engine	HONDA GX25
Engine type	4-stroke, centrifugal clutch, oil level sensor
Vibration frequency	9000 vibrations per minute
Compatible beam	Aluminum with curved profile and smooth surface (universal for QZ models)
Beam lengths (orderable separately)	2 m / 2.5 m / 3 m / 4 m
Symmetric beam	Can be mounted and reversed for wear on both sides
Working direction adjustment	By rotating the handle (back and forth)
Handle	Ergonomic and articulated, comfortable at height
Accessories	Control handle included; screed beam ordered separately

How to Use the Product

Mount the ENAR QZH motor unit on the compatible screed beam (beam ordered separately).
Use the vibrating screed board to smooth and compact fresh concrete, achieving a level surface.
Adjust the working direction back and forth by rotating the handle to speed up the work process.

Order now the ENAR QZH screed motor and enjoy 9000 VPM and easy handling for level concrete surfaces.

Centrifugal force (N):1500

Frequency (vib/min):9000

Tank (L):0.5

Length (m): 2 2.5 - 3 - 4

Engine power (HP):1.1

Net weight (kg):7

Gross weight (kg):14

Fuel:gasoline

Engine:HONDA GX25

Centrifugal force (kN):1.5
