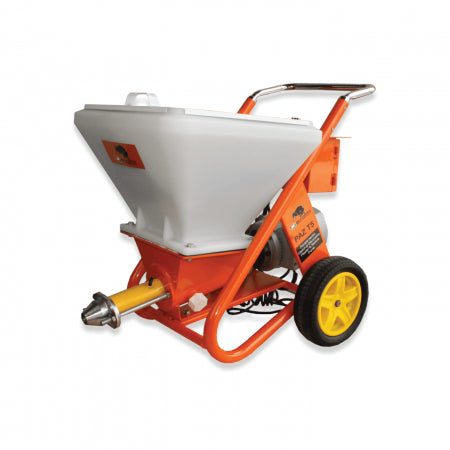

Grout and decorative pump, Bisonte PCS-T5 flow rate 15 l/min. and Wagner C330/03 compressor

Disponibil: in stock

15.600 00 Lei

Cantitate

Beneficii

FREE SHIPPING PAYMENT UPON DELIVERY!
Pump type: Screw pump.
Power supply: 230V – 50Hz.
Motor type: Brushless DC.
Motor power: 2.2 kW.
Max. pressure: 20 bar.
Max. hose pressure: 117 bar.
Max. flow rate: 15 l/min.
Max. grain size: 3 mm.
Max. pumping height: 15 m.
Material container capacity: 40 l.
Net weight: 42 kg.
Gross weight (with packaging): 70.5 kg.
Packaged dimensions (L x W x H): 850 x 560 x 820 mm.

PCS-T5 Putty and Decorative Material Pump 15 l/min, 2200W motor + Wagner C330/03 Compressor – rapid application and uniform spraying

General Description

The PCS-T5 is a pump for putty and decorative materials, designed for spray application with a worm drive system, a solution that is easier and faster than manual texture application.

The equipment can be used without a compressor for joints, adhesives, and self-leveling screed, and with a compressor for putties (filling/finishing) and decorative plasters, with a grain size of up to 2.5 mm.

Thanks to the high material flow rate and the 2.2 kW brushless DC motor, the PCS-T5 ensures continuous and uniform pumping and spraying, with low material consumption. Its light weight and included wheels improve maneuverability, while assembly is quick and maintenance is easy.

Key Benefits

Worm drive application faster than the manual method
Use with or without a compressor, depending on the material
High material flow rate: up to 15 l/min
Powerful brushless DC motor: 2.2 kW
Continuous and uniform spraying thanks to the rotor and stator
Reduced material consumption
Good maneuverability due to low weight and wheels
Quick assembly and easy maintenance

Features and Specifications

Feature	Detail
Model	PCS-T5 (PCS(PAZ)-T5)
Pump type	Worm drive
Power supply	230V – 50Hz
Motor type	Brushless DC
Motor power	2.2 kW (2200W)
Maximum pressure	20 bar
Maximum hose pressure	117 bar
Maximum flow rate	15 l/min
Maximum grain size	3 mm
Recommended grain size (with compressor)	Max. 2.5 mm (decorative plasters)
Maximum pumping height	15 m
Material container capacity	40 l
Net weight	42 kg
Gross weight (with packaging)	70.5 kg
Packaged dimensions (L × W × H)	850 × 560 × 820 mm

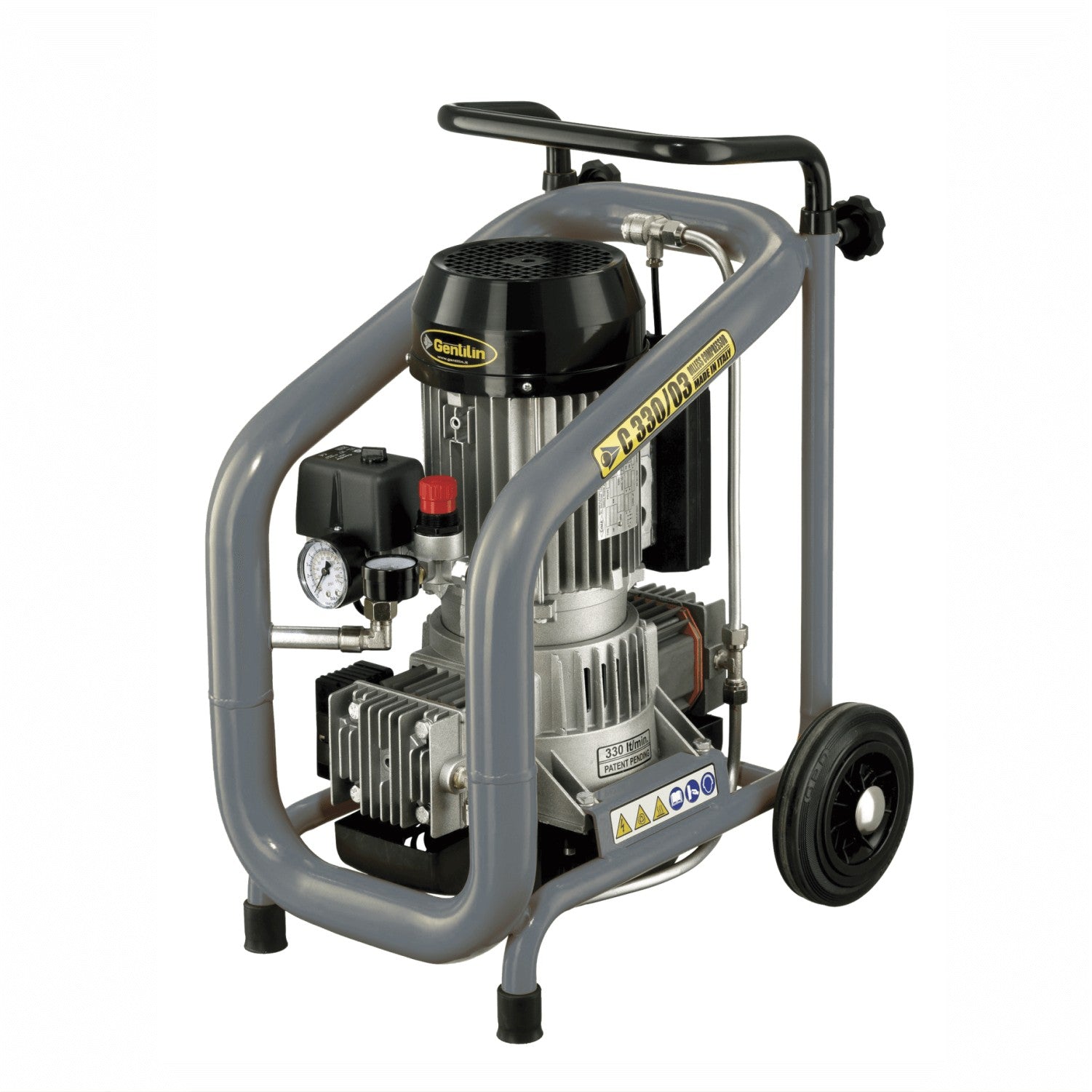

Compressor included	Wagner C330/03
Compressor recommendation	Minimum flow rate 330 l/min, pressure 10 bar

Applicable materials

Finishing and filling putties, decorative paints, grout, fire retardant materials, mineral filling materials, sound and thermal insulation materials, bituminous materials, adhesives.

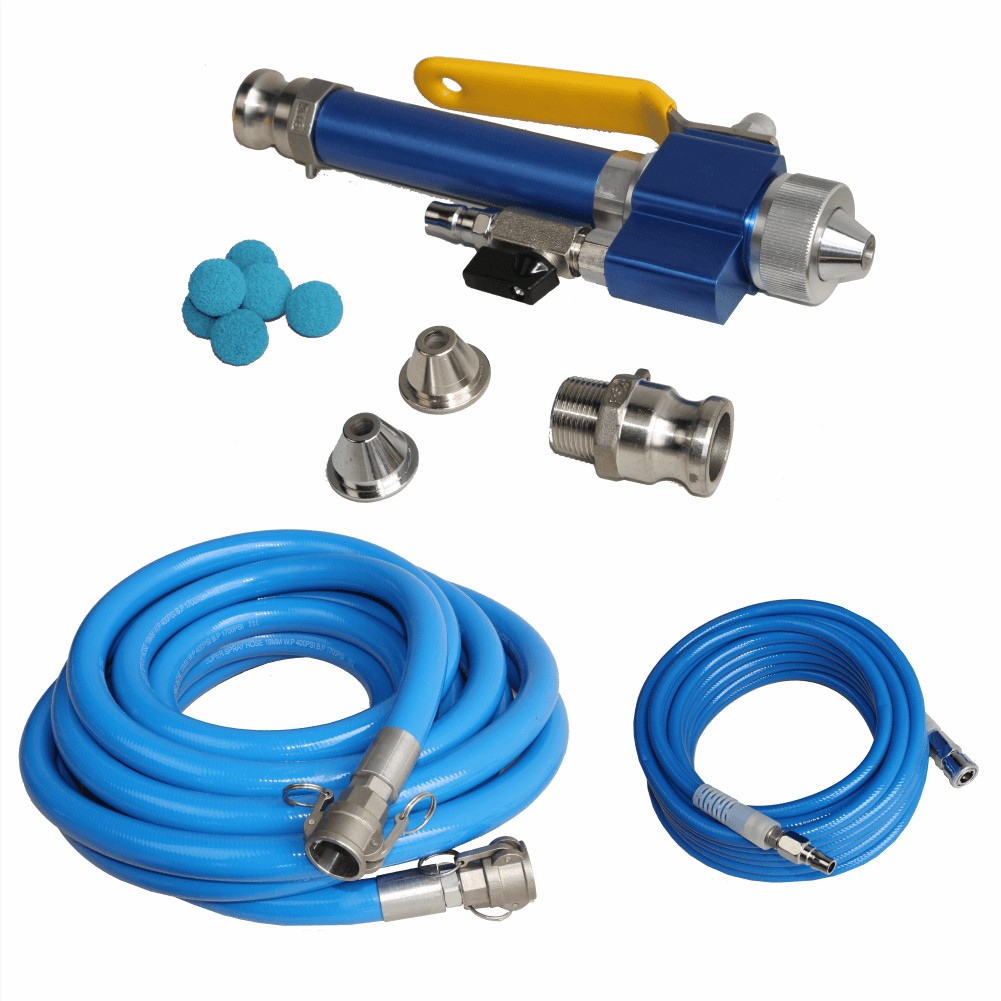

Standard equipment

1 × Rotor
1 × Stator
1 × Spray gun
3 × Ceramic nozzles (6, 8)
6 × Hose cleaning sponges
1 × Material hose diam. 19 mm, quick couplings, 117 bar
1 × Air hose, quick couplings, 13 mm
1 × Set of two wrenches
1 × Cleaning brush
1 × Wagner C330/03 Compressor

How to use the product

Choose the operating mode: without a compressor for joints, adhesives, and self-leveling screed or with a compressor for putties and decorative plasters (up to 2.5 mm).
For working with a compressor, a compressor with a minimum flow rate of 330 l/min and pressure of 10 bar is recommended.
Use the equipment for continuous pumping and spraying; the rotor and stator ensure a uniform material flow.

* Pumping distance and material flow rate are indicative and non-binding, being influenced by the viscosity and grain size of the material used, the type and wear of the rotor/stator, as well as the ambient temperature.

Order now the PCS-T5 Putty and Decorative Material Pump + Wagner C330/03 Compressor and enjoy rapid application and uniform spraying of materials.

Applicable materials:

Finishing and filling putties, decorative paints, fillers, fire retardant materials, mineral filling materials, sound and thermal insulation materials, bituminous materials, adhesives.

Standard equipment:

1 x Rotor.

1 x Stator.

1 x Spray gun.

3 x Ceramic nozzles 6, 8.

6 x Hose cleaning sponges.

1 x Material hose diam. 19 mm, quick couplings, 117 bar.

1 x Air hose, quick couplings, 13 mm.

1 x Set of two wrenches.

1 x Cleaning brush.

1 x Wagner C330/03 Compressor.
