Multifunctional pump Bisonte PCS-T5 230V flow rate 15 l/min

Disponibil: in stock

10.500 00 Lei

Cantitate

12.831 52 Lei

Beneficii

Fully equipped and ready to work
Specialized technical consulting
Quality guarantee
Professional equipment

PCS-T5 Screw Pump Spray System – Fast Application and High Flow Rate for Plasters and Decorative Materials

General Description

The PCS-T5 is a screw pump spray system designed for easier and faster application than manual methods, especially for texturing and finishing work.

The equipment can be used without a compressor for joints, adhesives, and self-leveling screed, and with a compressor for plasters (base coat/finish coat) and decorative renders with a particle size up to 2.5 mm.

With its low weight and included wheels, the PCS-T5 offers good maneuverability on-site, quick assembly, and easy maintenance, making it a high-performance equipment for spraying decorative materials.

Main Benefits

Faster and easier application than manual texture application.
Use without a compressor for joints, adhesives, and self-leveling screed.
Use with a compressor for plasters and decorative renders (max. particle size 2.5 mm).
High material flow rate: 15 l/min.
Continuous and uniform pumping and spraying thanks to the rotor and stator.
Low weight and wheels for increased maneuverability.
Quick assembly and easy maintenance.
Reduced material consumption.

Features and Specifications

Feature	Detail
Equipment type	Screw pump spray system – PCS-T5
Material flow rate	15 l/min

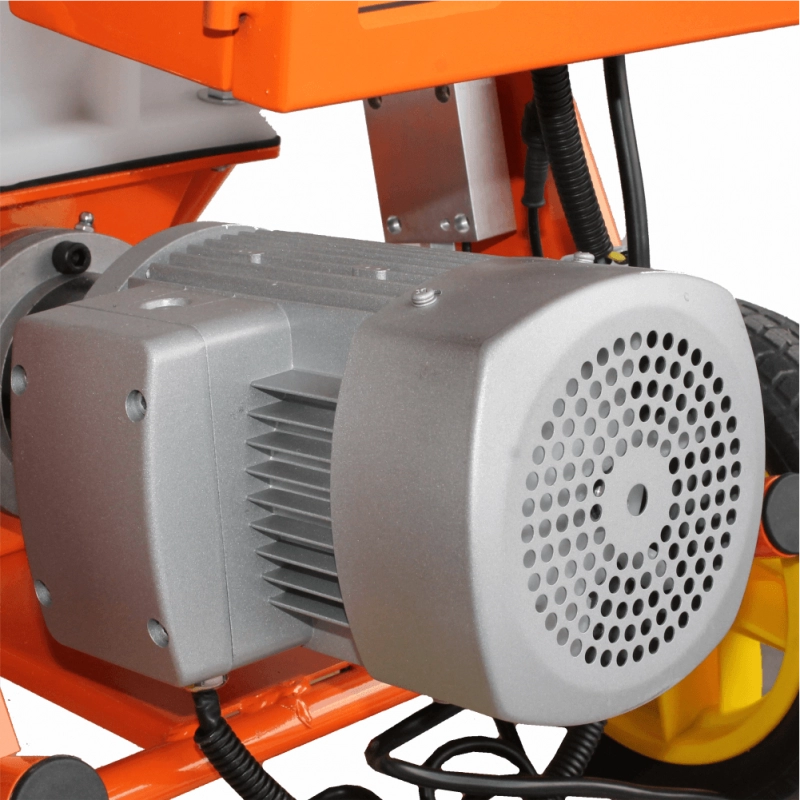

Motor	Brushless DC motor, 2.2 kW
Use without compressor	Joints, adhesives, self-leveling screed
Use with compressor	Plasters (base coat/finish coat), decorative renders (max. particle size 2.5 mm)
Recommended compressor	Minimum flow rate 330 l/min, pressure 10 bar
Maximum particle size	2.5 mm (for decorative renders)
Durability (painting projects)	Projects up to 5,000 – 10,000 sqm
Spraying	Continuous and uniform (rotor + stator)
Mobility equipment	Wheels included, low weight
Air connection	Compressor air inlet nozzle

Applicable Materials

Finish and base coat plasters
Decorative paints
Putty
Fire-retardant materials
Mineral fillers
Sound and thermal insulation materials
Bituminous materials
Adhesives

Standard Equipment

1 x Rotor
1 x Stator
1 x Spray gun
3 x Metal nozzles (6, 8)
6 x Hose cleaning sponges
1 x Material hose Ø 19 mm, quick couplings, 117 bar
1 x Air hose, quick couplings, 13 mm
1 x Set of two wrenches
1 x Cleaning brush

How to Use the Product

Choose the material and working mode: without a compressor (joints, adhesives, self-leveling screed) or with a compressor (plasters and decorative renders up to 2.5 mm).
If working with a compressor, use a recommended one: minimum 330 l/min and 10 bar, connecting the air inlet.
Ensure cleaning and maintenance as needed, using the accessories from the standard equipment.

Note

The pumping distance and material flow rate are indicative and non-binding. These specifications are influenced by the viscosity and particle size of the material used, the type and wear of the rotor/stator, and the ambient temperature.

Order now the PCS-T5 screw pump spray system and enjoy fast application and uniform spraying for a wide range of materials.

Pump type With auger (screw)

Maximum particle size 3 mm

Maximum material hose pressure 117 bar

Maximum operating pressure 20 bar

Material flow 15 l/min

Maximum pumping height 15 m

Material tank capacity 40 l

Engine power 2.2 kW

Voltage 230 / 50 V / Hz

Motor technology brushless DC -

Equipment weight 42 kg
