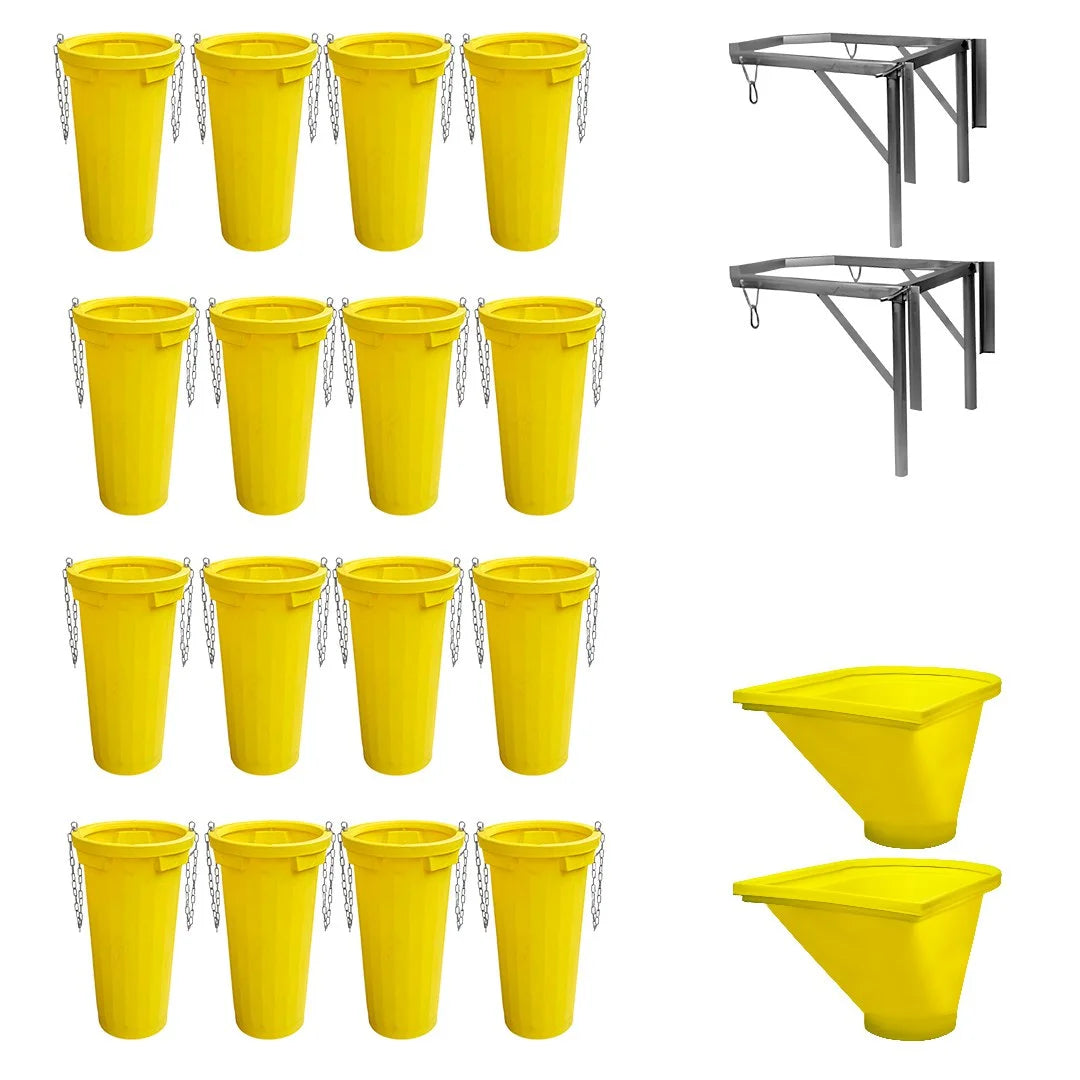

Evacuation Chute Set Imer 16 Chute Tubes 2 Support Frames 2 Loading Hoppers
- After placing the order, we will confirm the shipping cost by email, which will be calculated based on your location.
Tekcnoplast Construction Waste Chute System – complete set, large dimensions, and 100% Italian manufacturing
General description
The Tekcnoplast construction waste chute system is manufactured in Italy and offers an advantageous set, suitable for efficient organization of waste disposal on site.
The package includes chute pipes, hopper supports, and loading hoppers, all designed for practical use in the construction site workflow. The components are finished in yellow for good visibility in the work area.
The set is 100% manufactured in Italy by Tekcnoplast SRL, and the hopper supports are made of galvanized steel, with an adjustable frame.
Main benefits
- Complete set for construction waste disposal, suitable for construction sites
- 100% manufactured in Italy by Tekcnoplast SRL
- Includes 16 chute pipes for building the column
- Hopper supports made of galvanized steel, with an adjustable frame
- Loading hoppers included for easy feeding of the chute column
- Yellow components for good visibility on site
Features and specifications
| Feature | Detail |
|---|---|
| Product | Construction waste chute system |
| Manufacturer | Tekcnoplast SRL |
| Country of manufacture | Italy |
| Set contents | 16 chute pipes + 2 hopper supports + 2 loading hoppers |
Chute pipe (TE0001119) – 16 pcs.
| Feature | Detail |
|---|---|
| Code | TE0001119 |
| Upper outer diameter | 590 mm |
| Upper inner diameter | 500 mm |
| Lower inner diameter | 380 mm |
| Length | 1060 mm |
| Color | Yellow |
| Weight | 8 kg |
Hopper support (TE0001121) – 2 pcs.
| Feature | Detail |
|---|---|
| Code | TE0001121 |
| Purpose | Support for loading hopper |
| Material | Galvanized steel |
| Construction | Adjustable frame |
| Manufacture | 100% manufactured in Italy by Tekcnoplast SRL |
Loading hopper (TE0001120) – 2 pcs.
| Feature | Detail |
|---|---|
| Code | TE0001120 |
| Loading opening size | 830 × 430 mm |
| Lower inner diameter | 390 mm |
| Height | 650 mm |
| Length | 980 mm |
| Width | 740 mm |
| Color | Yellow |
| Weight | 7 kg |
How to use the product
- Assemble the chute pipes to form the column needed for waste disposal on site.
- Install the hopper supports and adjust the frame for correct positioning of the loading hopper.
- Mount the loading hoppers and use the loading opening to feed the column with waste, according to the workflow.
Order now the Tekcnoplast construction waste chute system and enjoy a complete set and 100% Italian manufacturing.
