Fiac Single-Phase Pressure Switch 15 Bar Ne-Ma
Fiac Single-Phase Pressure Switch 15 Bar Ne-Ma
Fiac Single-Phase Pressure Switch 15 Bar Ne-Ma
Fiac Single-Phase Pressure Switch 15 Bar Ne-Ma
Fiac Single-Phase Pressure Switch 15 Bar Ne-Ma
Fiac Single-Phase Pressure Switch 15 Bar Ne-Ma
FIAC

Fiac Single-Phase Pressure Switch 15 Bar Ne-Ma

Product SKU: 1127250062
Greutate 1 kg
Available:
350,00 lei
  • Description

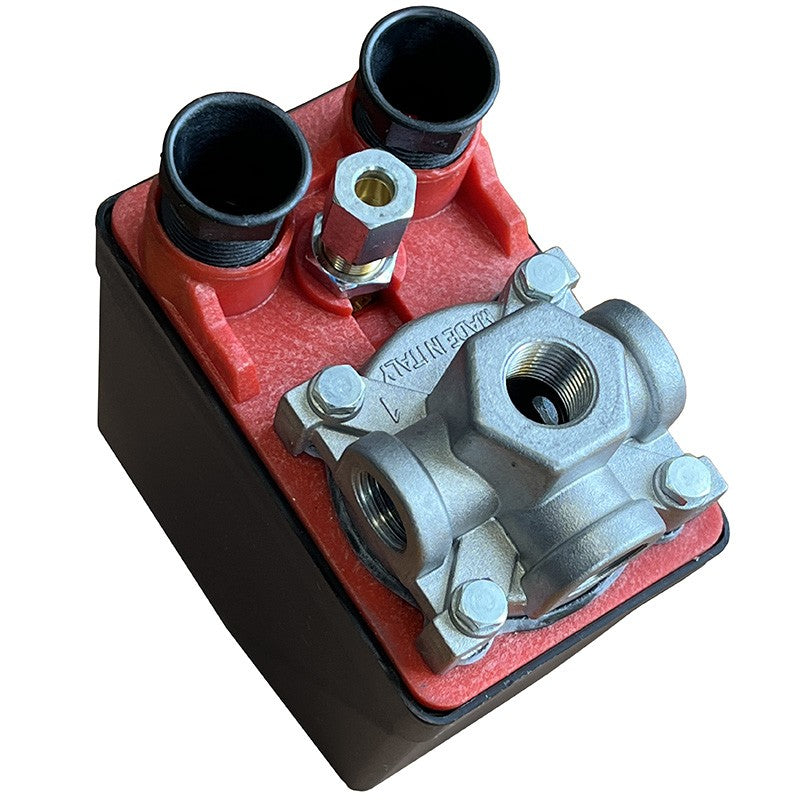

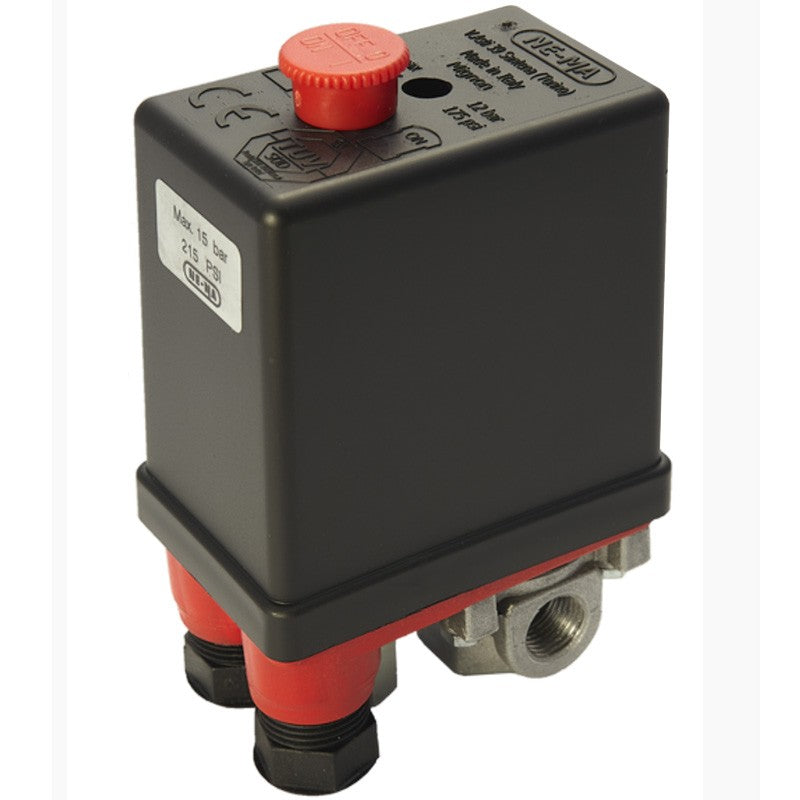

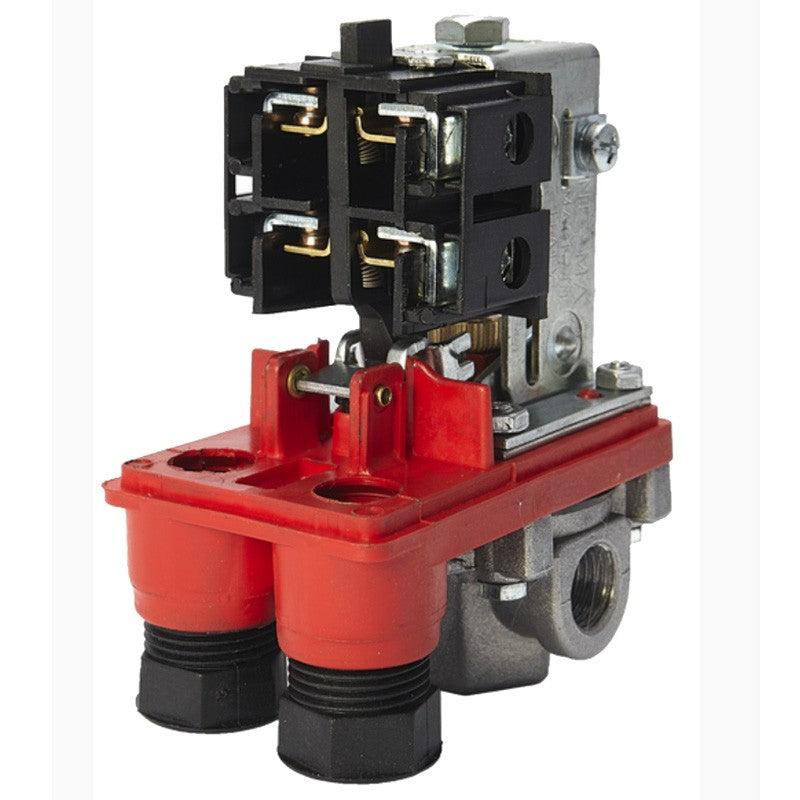

Single-phase pressure switch NE-MA PM16+RE, with thermal protection.

  • Die-cast aluminum flange

  • Corresponds to EN 60947

  • TUV approved

  • Protection class: IP54

  • The factory settings for this pressure switch are: ∆P = 3.5 bar; Pmax = 15.5 bar - that is, when the pressure reaches 15.5 bar, the compressor stops, respectively when the pressure drops

  • up to 12 bars, the compressor starts again. Both the maximum pressure and the pressure difference between start and stop can be adjusted.

  • Made in Italy




  • Voltage: 220V

  • Maximum amperage: 20 A

  • Maximum pressure 15.5 bar

  • Minimum pressure: 9 bar

  • Pressure difference: 3.5 bar (adjustable)

  • For engines of max. 4 kW

  • 3 1/4" female connections + 1 3/8" female connection

  • 2 cable glands with a diameter of 13 mm

  • Connection for rilsan air hose 6mm

  • Working temperature: 0 - 50 degrees C

  • Dimensions: 80 x 50 x 125 mm

  • Weight: 300g

Weight 1 kg
Dimensions 10 × 10 × 10 cm
Brand FIAC
