Presostat Trifazat Fiac Condor 15 Bar Mdr3/16

FIAC

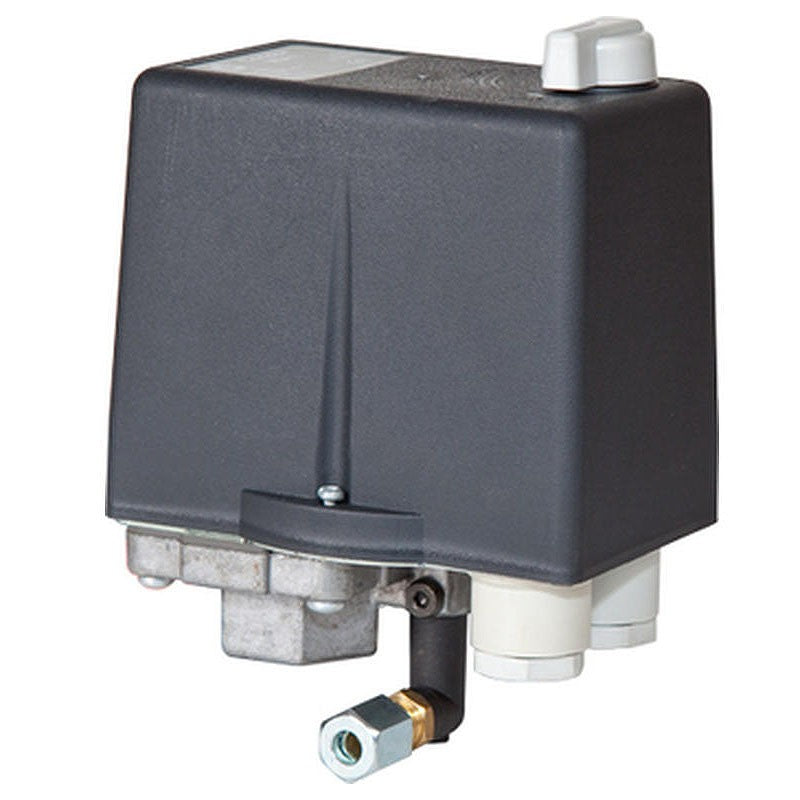

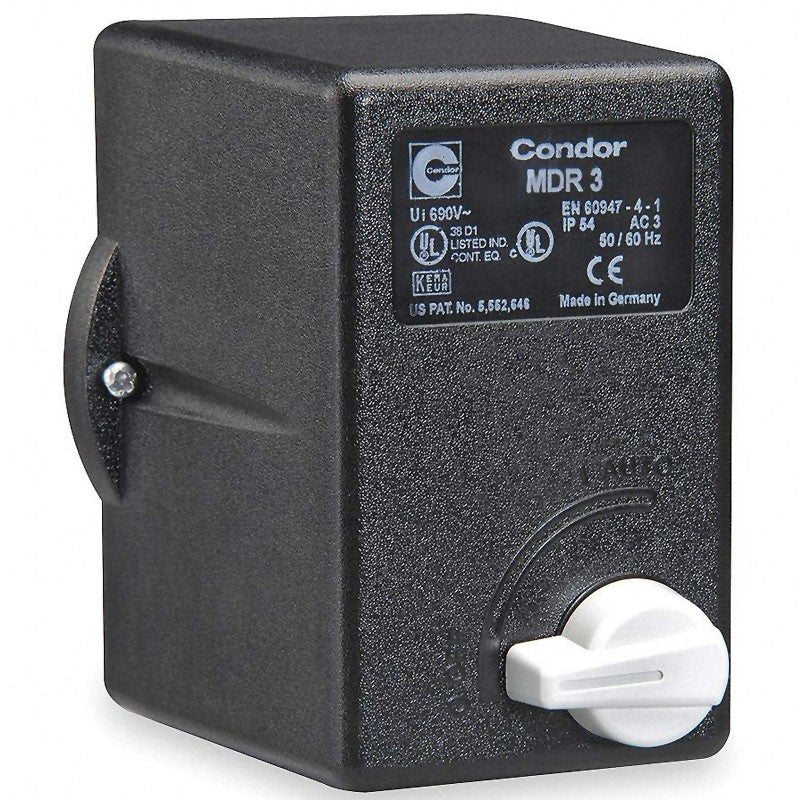

Three-phase pressure switch Fiac Condor 15 Bar Mdr3/16

Name: Three-phase pressure switch Fiac Condor 15 Bar Mdr3/16
Brand: FIAC
SKU: 1127250052
Price: 510.0 RON
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 1127250052

Categorie compari ro Casa si gradina > Accesorii pompe

Greutate 1 kg

Available:

510,00 lei

Description
Caracteristici

Three-phase pressure switch Condor MDR3/16 code 215707, with start valve.

Provided with thermal overload protection

Die-cast aluminum flange

Made in Germany

Corresponds to EN 60947

The factory settings for this pressure switch are: ∆P = 2 bar; Pmax = 15 bar; Pmin = 13 bar - that is, when the pressure reaches 15 bar, the compressor stops, respectively, when the pressure drops to 13 bar, the compressor starts again.

Both the maximum pressure and the pressure difference can be adjusted.

Voltage: 380V

max pressure 16 bars

Amperage: 6.3 - 10 A

For engines of: 2.25 - 4 kW (3 - 5.5 HP)

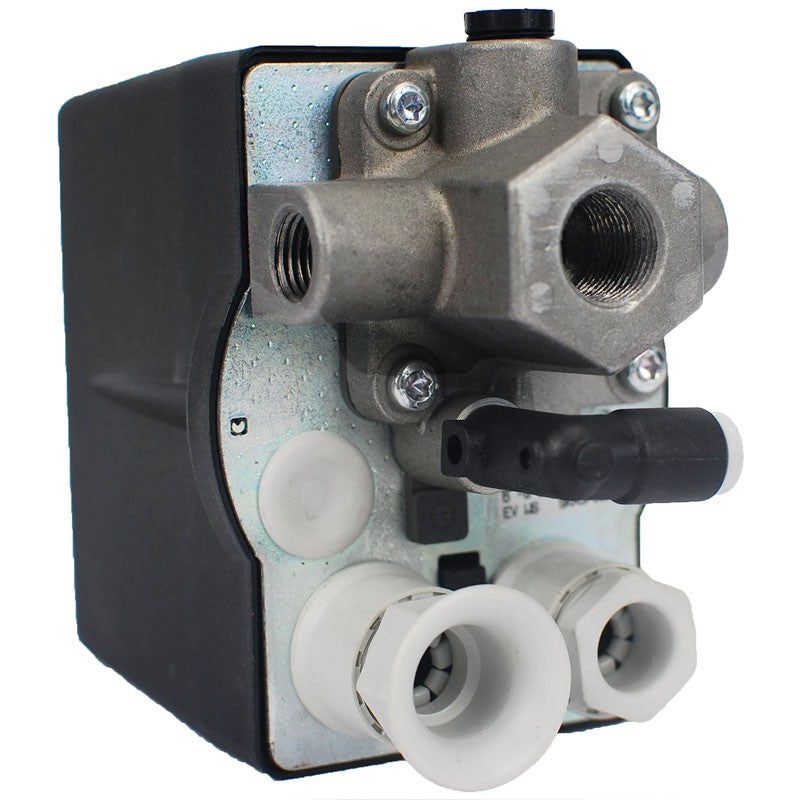

3 1/4" female connections + 1 3/8" female connection

Weight: 620 g

Weight 1 kg

Dimensions 15 × 15 × 15 cm
