Presostat Monofazat Fiac Condor Mdr2, 16A

FIAC

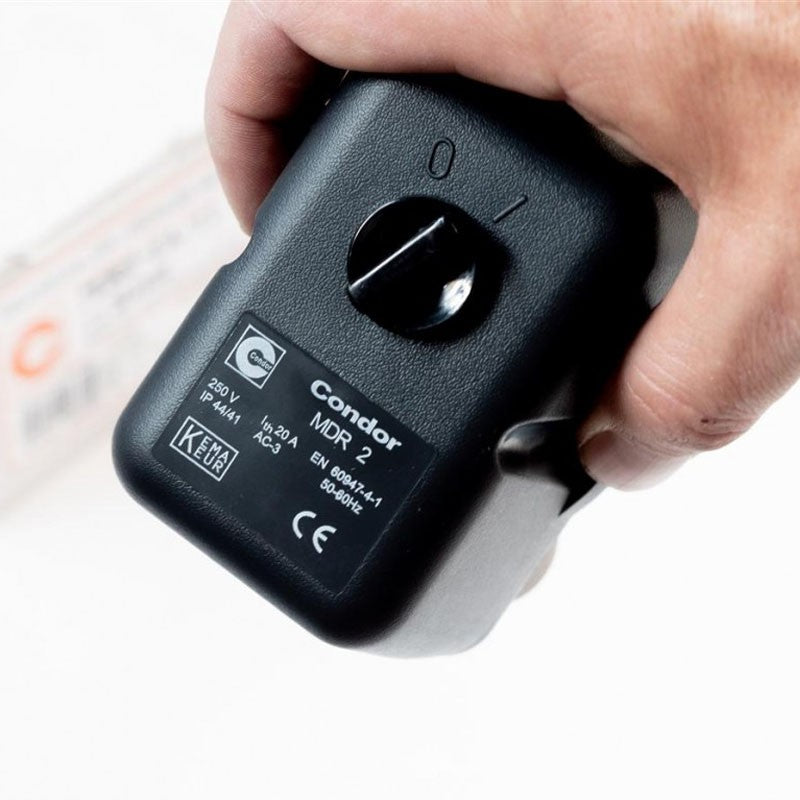

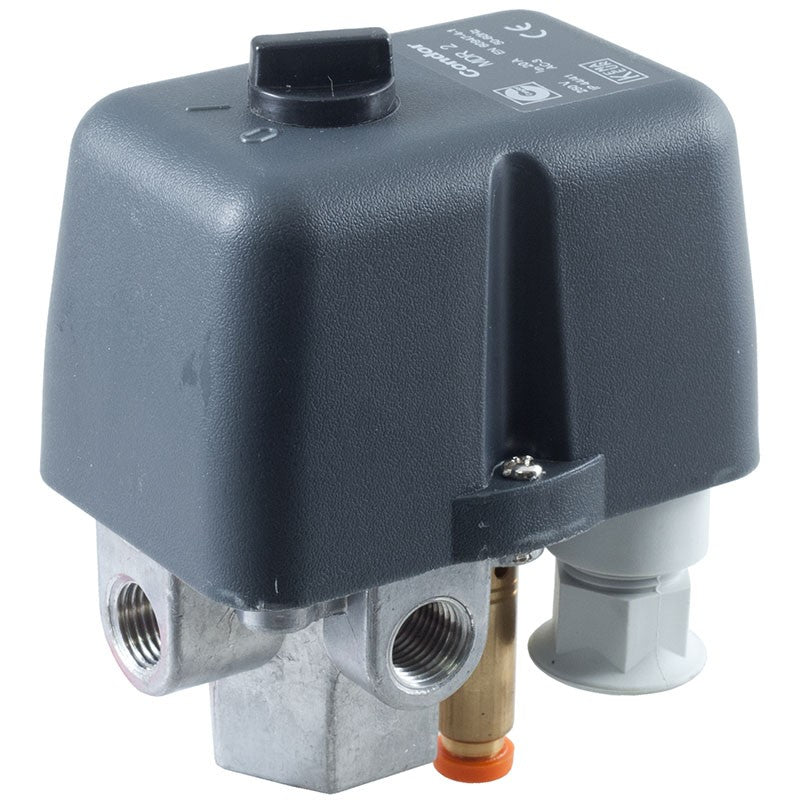

Single-phase pressure switch Fiac Condor Mdr2, 16A

Name: Single-phase pressure switch Fiac Condor Mdr2, 16A
Brand: FIAC
SKU: 1127250036
Price: 230.0 RON
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 1127250036

Categorie compari ro Casa si gradina > Accesorii pompe

Greutate 1 kg

Available:

230,00 lei

Description
Caracteristici

Condor MDR2 single-phase pressure switch code 212188 with start valve.

Provided with thermal overload protection

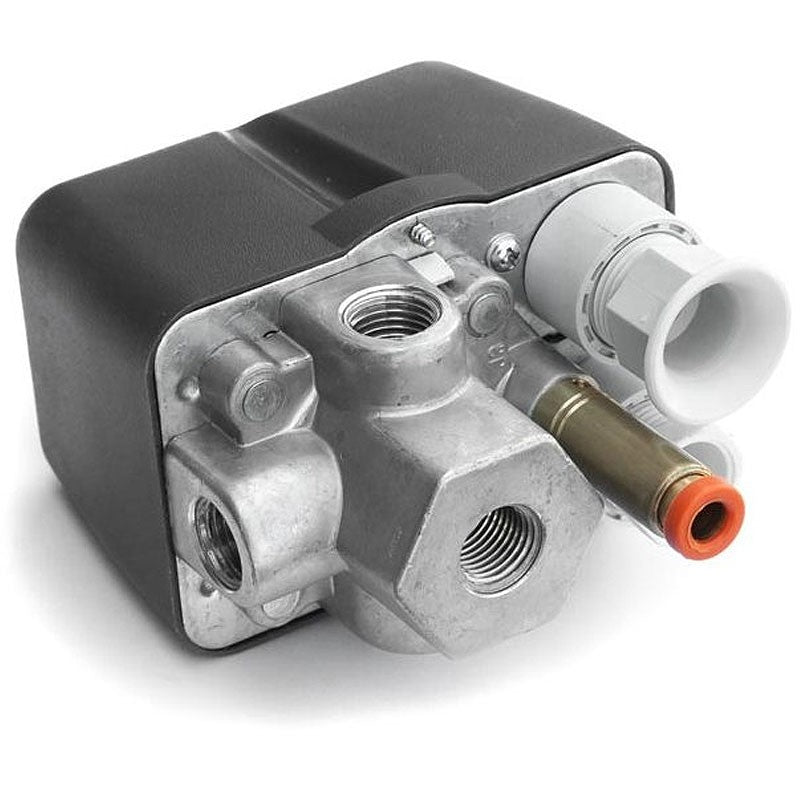

Die-cast aluminum flange

With AEV 2S quick coupler for 6mm hose

Made in Germany

Corresponds to EN 60947

The factory settings for this pressure switch are: ∆P = 2 bar; Pmax = 10 bar; Pmin = 8 bar - that is, when the pressure reaches 10 bar, the compressor stops, respectively, when the pressure drops to 8 bar, the compressor starts again. Both the maximum pressure and the pressure difference can be adjusted.

The pressure switch supports a maximum of 120 on/off cycles per hour, and has a lifespan of over 100,000 cycles

max pressure 12 bars

Amperage: 16 A

For engines of max. 2.25 kW (3 hp)

On-off rotary switch (I / 0)

4 connections 1/4" female

IP44 protection

Working temperature: - 5...+ 80 °C

Weight: 369g

Weight 1 kg

Dimensions 20 × 20 × 20 cm
