Three-phase pressure switch Fiac Condor Mdr3 16A Type 840/3

FIAC

Three-phase pressure switch Fiac Condor Mdr3 16A Type 840/3

Name: Three-phase pressure switch Fiac Condor Mdr3 16A Type 840/3
Brand: FIAC
SKU: 1127250050
Price: 540.0 RON
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 1127250050

Greutate 1 kg

Available:

540,00 lei

Description
Caracteristici

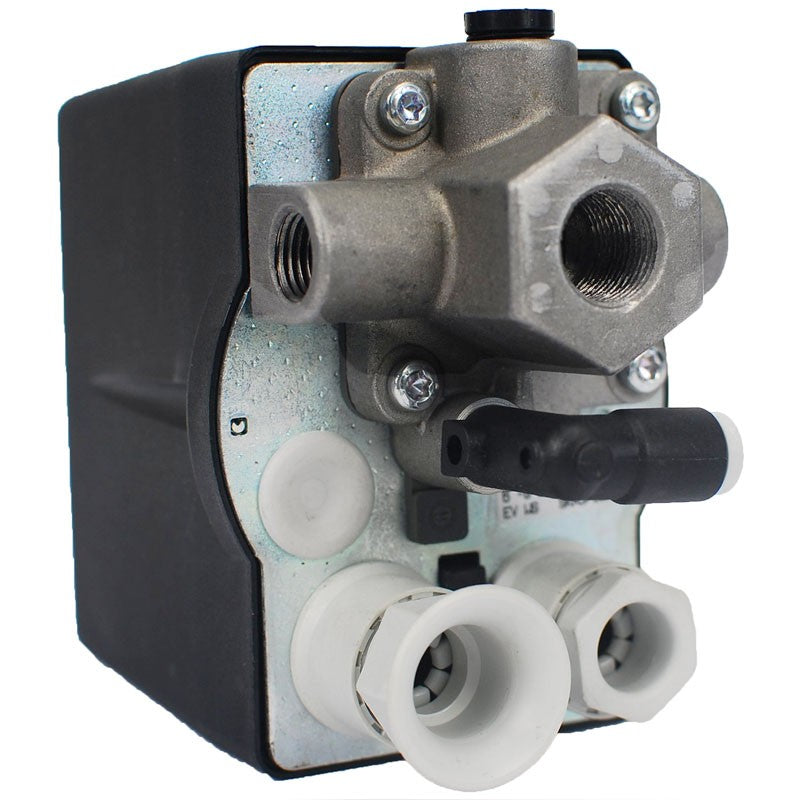

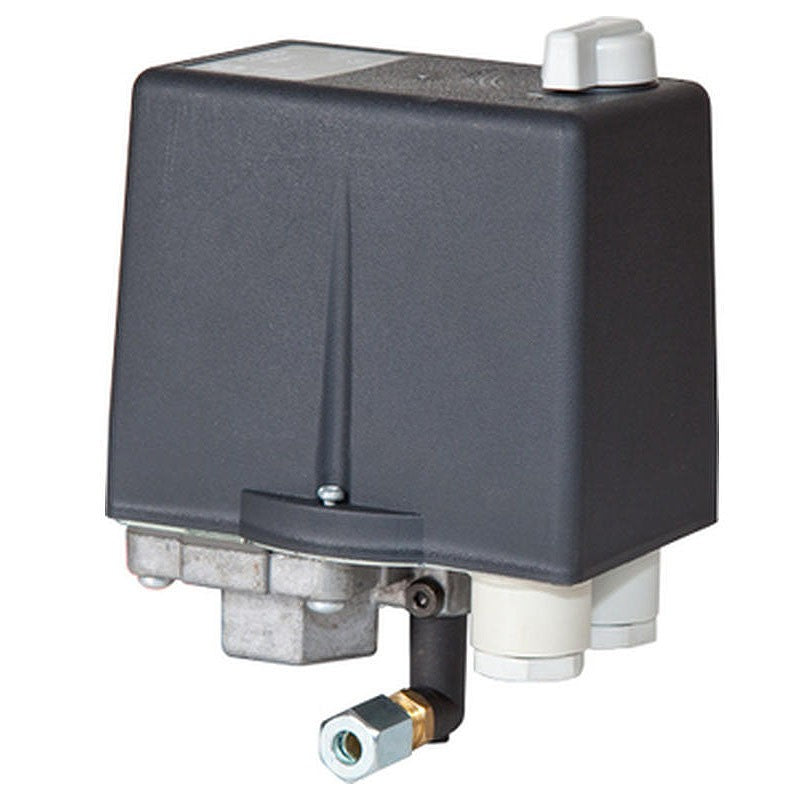

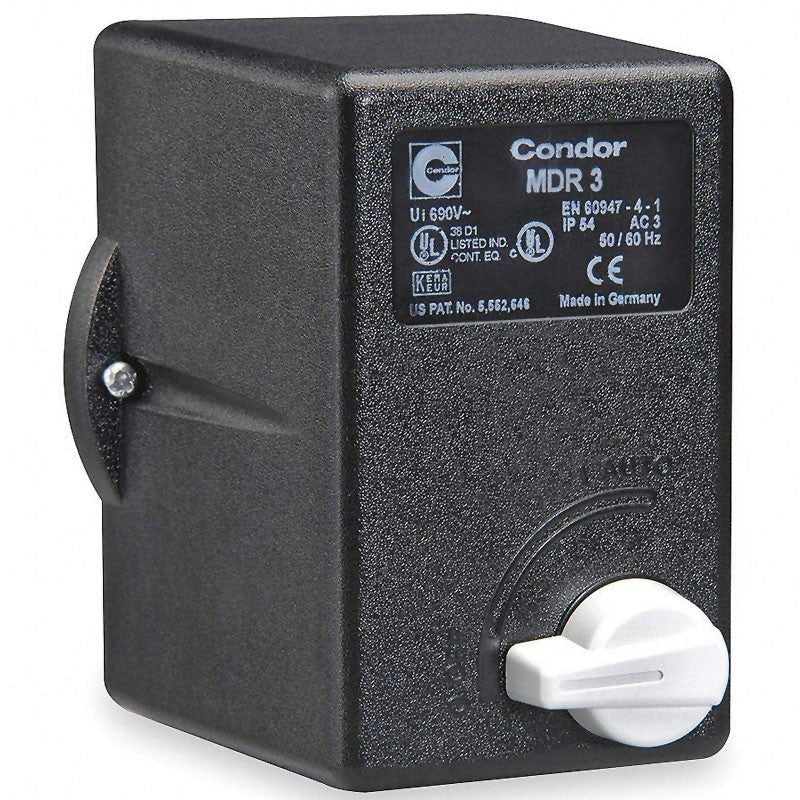

Three-phase pressure switch Condor MDR3/11 code 215332, with start valve.

Provided with thermal overload protection

Die-cast aluminum flange

Made in Germany

Corresponds to EN 60947

The factory settings for this pressure switch are: ∆P = 2 bar; Pmax = 10 bar; Pmin = 8 bar - that is, when the pressure reaches 10 bar, the compressor stops, respectively, when the pressure drops to 8 bar, the compressor starts again. Both the maximum pressure and the pressure difference can be adjusted.

Voltage: 380V

Maximum pressure 11 bar

Amperage 10 - 16 A

For engines of: 3 - 7.5 kW (4 - 10 HP)

3 1/4" female connections + 1 3/8" female connection

Weight: 620 g

Weight 1 kg

Dimensions 10 × 10 × 10 cm

Brand FIAC
