Piston Compressor, Professional Type Ab200/415Mc

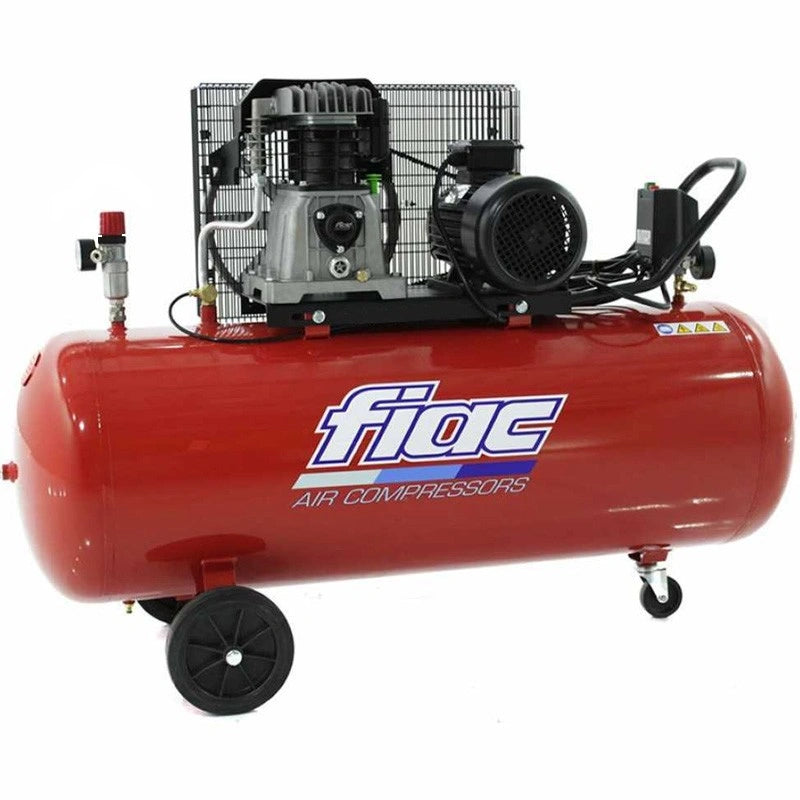

The AB200/415TC is a professional compressor with two pistons driven by a belt by a single-phase electric motor.
It has an improved performance, a robust construction and is equipped with a pressure switch with thermal protection, pressure gauge, pressure regulator with quick coupling, safety valve, purge valve, handle and wheels for transport.

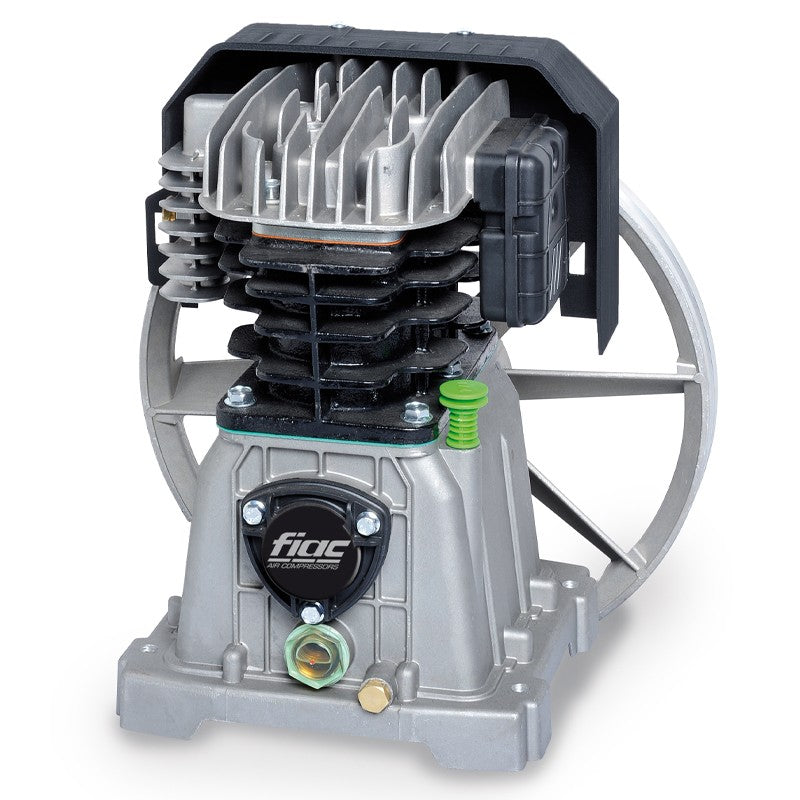

The pump is provided with an additional cooler with aluminum fins.
Having a cast iron cylinder head, cylinder head cover with large cooling fins, large pulley with helical vanes and a low pump speed, the lifespan of this compressor is greatly increased. At the same time, the noise level is also reduced.
The compressor is delivered with synthetic oil in the pump.
Made in Italy.
Supply voltage: 220 V
Bottle volume: 200 l
Maximum pressure: 10 bar
Transmission: with belt
Power (kW): 2.25 kW
Power (HP): 3.0 HP
Suction air flow rate: 400 l/min
Discharged air flow: 290 l/min
Lubrication: With oil
Number of cylinders: 2
Compression steps: 1
Speed: 1000 rpm
Construction: Horizontal
Compressor type: With wheels
Noise level (LpA, at 4m): 76 dB(A)
Sound power (LwA): 95 dB
Dimensions (L x W x H): 1460 x 460 x 960 mm
Weight: 109 kg
