9% 540,00 lei
Fiac Compressor with Piston, Professional Type Ab200/515Tc + Filter 3/8
Fiac Compressor with Piston, Professional Type Ab200/515Tc + Filter 3/8
Fiac Compressor with Piston, Professional Type Ab200/515Tc + Filter 3/8
Fiac Compressor with Piston, Professional Type Ab200/515Tc + Filter 3/8
Fiac Compressor with Piston, Professional Type Ab200/515Tc + Filter 3/8
Fiac Compressor with Piston, Professional Type Ab200/515Tc + Filter 3/8
FIAC

Fiac Compressor with Piston, Professional Type Ab200/515Tc + Filter 3/8"

Product SKU: AB200/515TC+F
Greutate 125 kg
Tensiune alimentare 380 V
Beneficii
› Tensiune alimentare: 380 V
› Volum butelie: 200 l
› Presiune maxima: 10 bar
› Transmisie: cu curea
› Putere (kW): 3.0 kW
› Putere motor (CP): 4.0 CP
› Debit de aer aspirat: 510 l/min
› Debit de aer refulat: 365 l/min
euplatesc dekstop
Available:
5.450,00 lei
5.990,00 lei
euplatesc mobile
  • Description

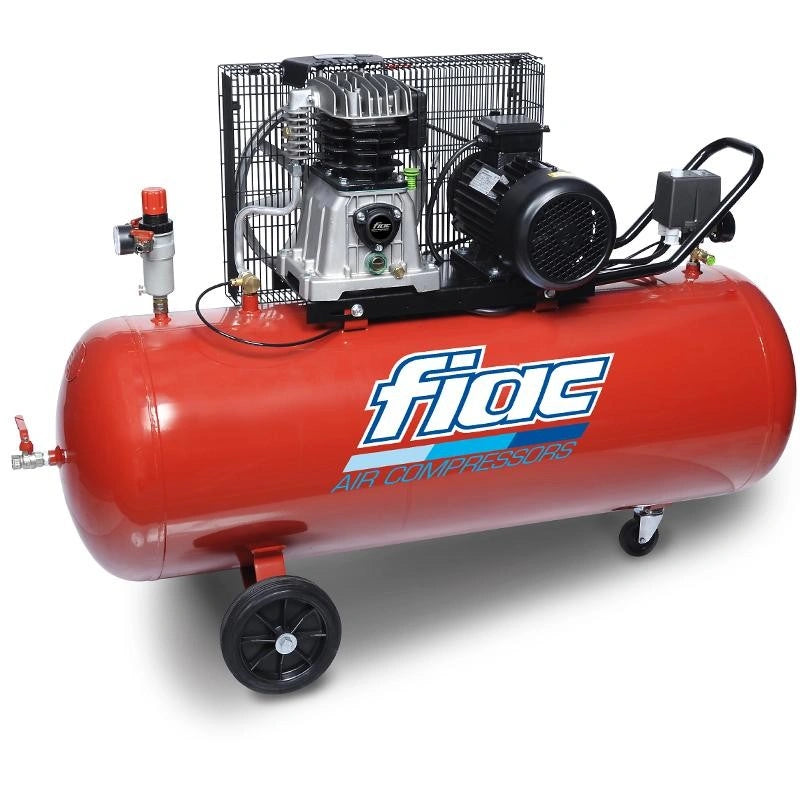

AB200/515TC+F is a professional compressor with two pistons driven by a belt by a three-phase electric motor.

  • It has an improved performance, a robust construction and is equipped with a manually resettable thermal protection pressure switch, pressure gauge, pressure regulator, safety valve, purge valve, handle and transport wheels.

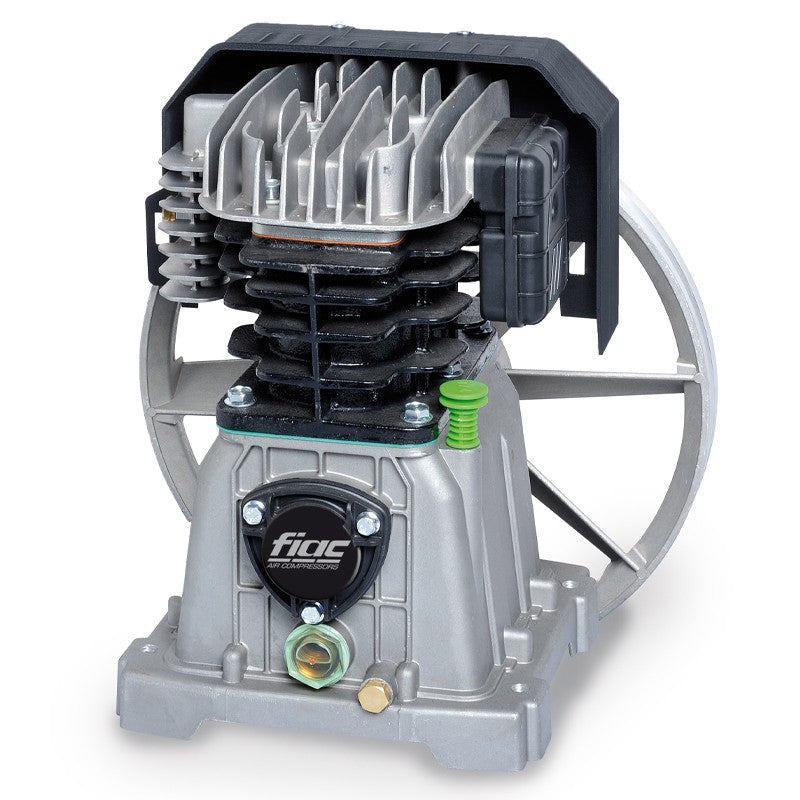

  • The pump works at low speed, which leads to its high reliability.

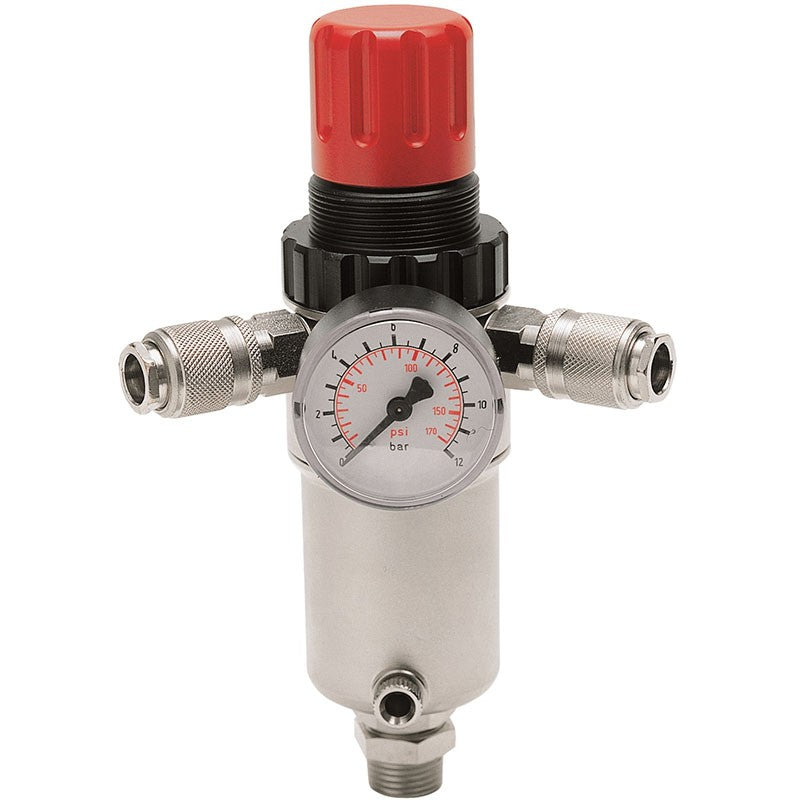

  • Equipped with a 3/8" air filter with an integrated pressure regulator, with two quick female couplings.

  • The compressor is mounted on three wheels (one of which swivels) to be transported easily.

  • AB200/515TC+F is very reliable so it is recommended for industrial applications in paint workshops, vulcanizing workshops, pneumatic tool actuation, small and medium enterprises.

  • Made in Italy

Weight 125 kg
Dimensions 1460 × 460 × 960 cm
Supply voltage: 380 V
Bottle volume: 200 l
Maximum pressure: 10 bar
Transmission: with belt
Power (kW): 3 kW
Power (HP): 4 HP
Suction air flow rate: 510 l/min
Discharged air flow rate: 365 l/min
Lubrication: With oil
Number of cylinders: 2
Compression stages: 1
Speed: 1280 rpm
Construction: Horizontal
Compressor type: With wheels
Noise level (LpA, at 4 80 dB
Dimensions (L x W x H): 1460 x 460 x 960 mm
Weight: 125 kg
Brand FIAC
