PFT COMP P-320/230V Air Compressor for PFT RITMO, PFT SWING M / L

Disponibil: in stock

10.400 00 Lei

Cantitate

Beneficii

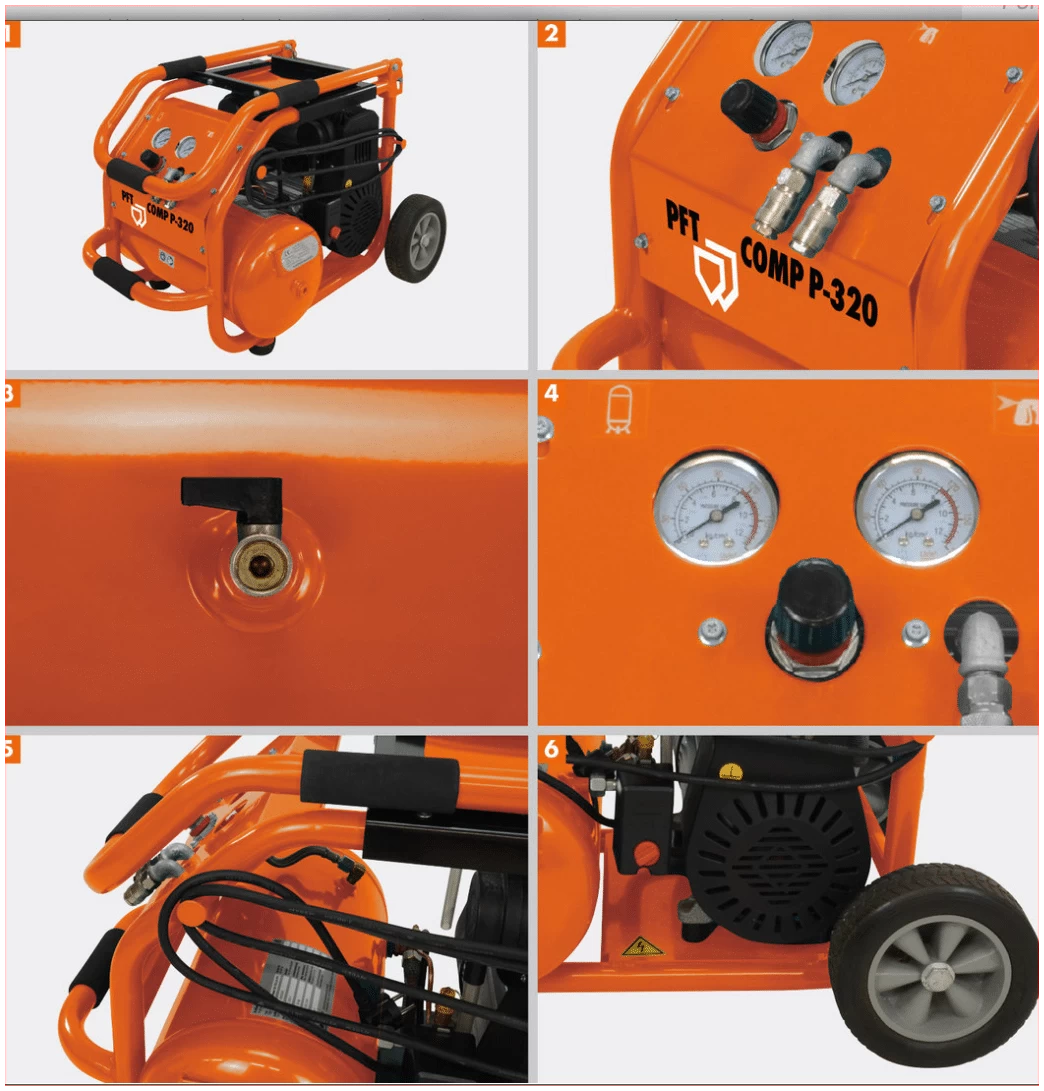

PFT COMP P-320 Air Compressor – Optimal Cooling and Reliable Compressed Air Supply

The PFT COMP P-320 air compressor is a piston compressor with V-cylinders, designed for practical use and consistent performance.

It is equipped with a suction filter and a large ventilation wheel, which ensure optimal cooling of the unit and motor during operation.

It features a complete safety fitting unit, with a filter pressure reducer and lubricator, for better control of use.

These compressors are used to supply air to PFT RITMO, PFT SWING M, and PFT SWING L equipment.

Piston construction with V-cylinders for stable operation.
Optimal cooling of the unit and motor due to the large ventilation wheel.
Complete safety unit, with filter pressure reducer and lubricator.
Two separate couplings for compressed air, for different uses.
Reduced pressure, oil-free compressed air for spraying.
Compressed air for connecting various tools.
Easy to handle thanks to robust wheels.
Condensate drain valve with a large screw and knurled head, for practical operation.

Feature	Detail
Product	PFT COMP P-320 Air Compressor
Compressor type	Piston compressor
Cylinder configuration	V-cylinders
Filter	Suction filter
Cooling	Large ventilation wheel for optimal cooling of the unit and motor
Safety	Complete safety fitting unit
Pressure control	Filter pressure reducer
Lubrication	Lubricator
Air couplings	Two separate couplings for compressed air
Outlet for spraying	Reduced pressure, oil-free compressed air
Outlet for tools	Compressed air for connecting various tools
Motor protection	Reliable motor protection function
Maneuverability	Robust wheels for easy handling
Condensate drainage	Condensate drain valve with large, knurled-head screw
Usage	Air supply for PFT RITMO, PFT SWING M, PFT SWING L

Connect the compressor for air supply to PFT RITMO, PFT SWING M, or PFT SWING L equipment, as needed.
Choose the appropriate coupling: reduced pressure, oil-free compressed air for spraying or compressed air for connecting tools.
Use the pressure reducer and lubricator, and finally drain the condensate through the dedicated valve.

Order now the PFT COMP P-320 Air Compressor and enjoy optimal cooling and reliable compressed air supply for your PFT equipment.

Suction capacity 320 l/min.

Power connection 230 V 50 Hz.

Drive 2.2 kW / 1400 rpm.

Working pressure max. 10 bar.

Sound pressure level 72 dB(A).

Dimensions (LxWxH) 800x585x535 mm.

Weight 54 kg.
