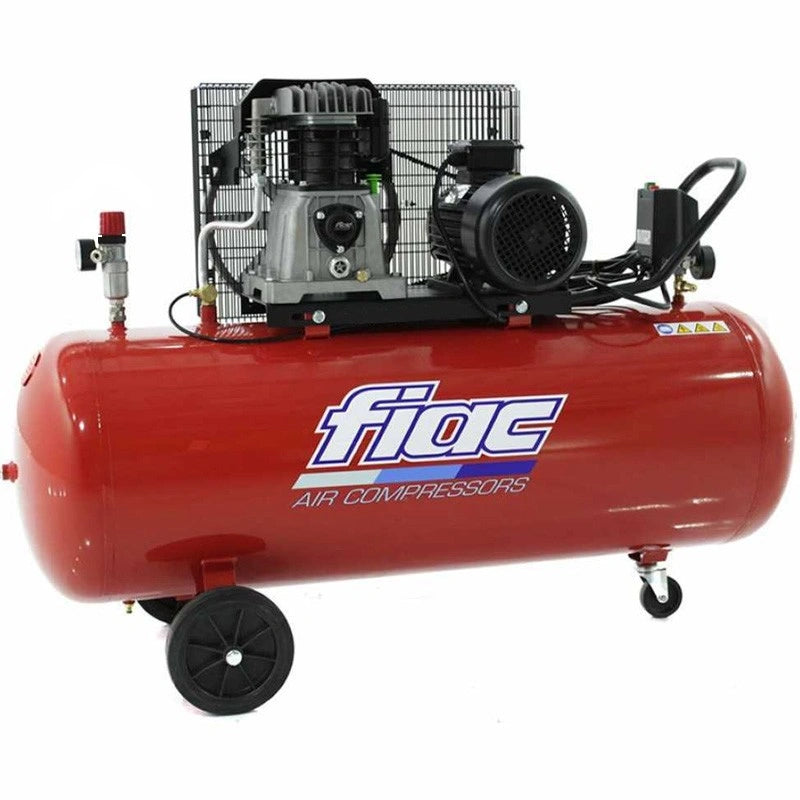

Piston Compressor, Professional Type Ab200/415Tc
- Supply voltage: 380 V
- Tank volume: 200 l
- Maximum pressure: 10 bar
- Drive type: Belt-driven
- Power (kW): 2.25 kW
- Motor power (HP): 3.0 HP
- Air intake flow: 400 l/min
- Air output flow: 290 l/min
AB200/415TC Professional Compressor 200L – 10 bar, belt-driven, high efficiency
General Description
The AB200/415TC is a professional twin-piston compressor, belt-driven by a three-phase electric motor, designed for intensive use and stable operation.
It benefits from improved efficiency and a robust construction, being equipped with a pressure switch with thermal protection, manometer, pressure regulator with quick coupling, safety valve, and drain valve.

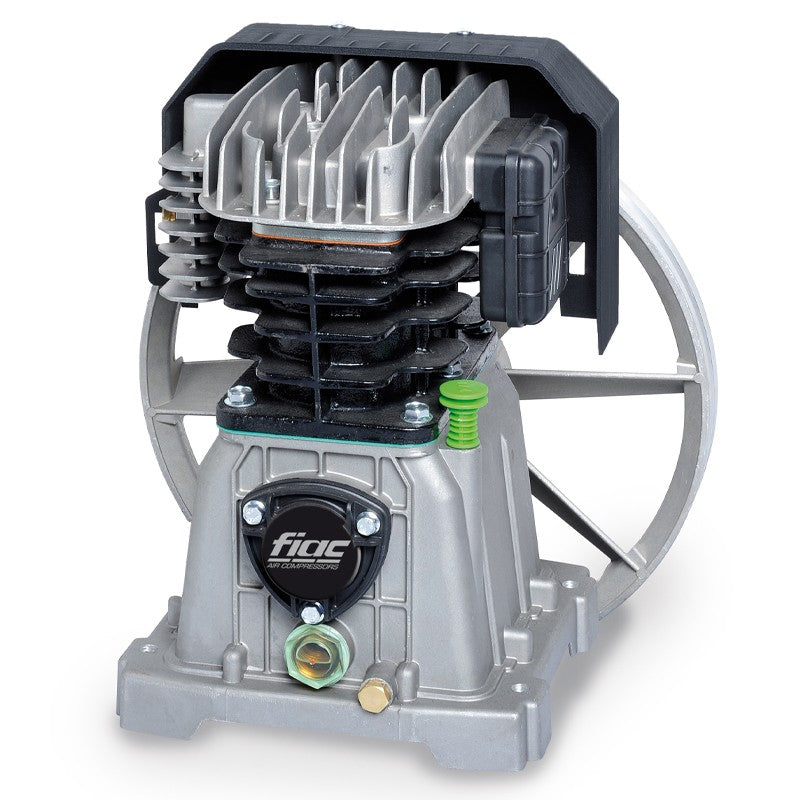

The pump has an additional cooler with aluminum fins, and the cast iron cylinder head, large finned cover, large pulley with helical blades, and low pump speed contribute to an increased lifespan and lower noise level.
The compressor comes with synthetic oil in the pump and is equipped with a handle and wheels for transport.
Key Benefits
- Extended lifespan due to the cast iron cylinder head and efficient cooling.
- Reduced noise through low pump speed and optimized design.
- Improved efficiency for professional applications.
- Enhanced safety with pressure switch with thermal protection and safety valve.
- Quick pressure control via manometer and quick-coupling regulator.
- Easy maintenance thanks to the drain valve.
- Easy transport with handle and wheels.
Features and Specifications
| Feature | Detail |
|---|---|
| Power supply voltage | 380 V |
| Tank volume | 200 l |
| Maximum pressure | 10 bar |
| Transmission | Belt-driven |
| Power | 2.25 kW |
| Motor power | 3.0 HP |
| Intake air flow | 400 l/min |
| Discharge air flow | 290 l/min |
| Lubrication | Oil-lubricated (synthetic oil in pump) |
| Number of cylinders | 2 |
| Compression stages | 1 |
| Speed | 1000 rpm |
| Construction | Horizontal |
| Compressor type | With wheels |
| Noise level (LpA, at 4 m) | 76 dB(A) |
| Sound power (LwA) | 95 dB |
| Dimensions (L x W x H) | 1460 x 460 x 960 mm |
How to use the product
- Place the compressor on a stable surface and connect it to the 380 V power supply.
- Set the required pressure using the pressure regulator and connect the pneumatic tool to the quick coupling.
- After use, use the drain valve to evacuate condensate.
Order now the AB200/415TC and enjoy professional performance and quieter operation with belt drive and robust construction.
