Putzmeister P 720 TD Stage V Concrete Pump

Disponibil: in stock

395.200 00 Lei

Cantitate

Beneficii

Hopper capacity: 250 l
Hopper capacity with rubber collar: 280 l
Delivery rate (theoretical): 3-21 m3/h
Maximum pressure: 80 bar
Pumping distance: up to 300 m horizontally and up to 100 m vertically
Shotcreting (fine concrete spraying): up to 100 m horizontally and up to 80 m vertically
Piston pump: 2 cylinders, hydraulic
Piston stroke: 700 mm
Delivery cylinder diameter: 150 mm

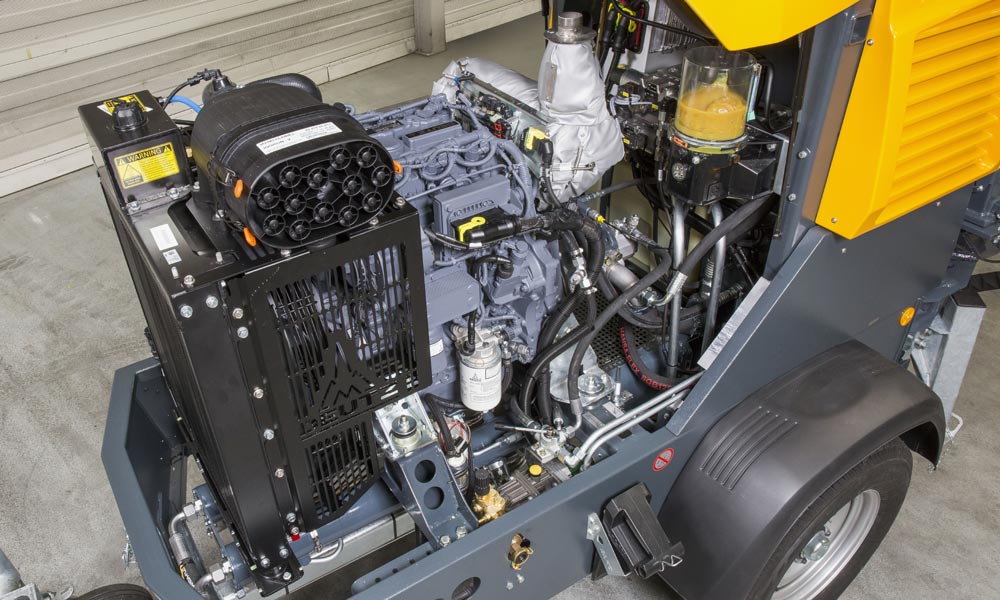

Engine: 3-cylinder Deutz Diesel with turbocharger Stage V
Power: 44.5 kW / 59.6 HP
Drive cylinder diameter: 80/45 mm
Maximum strokes: 29 strokes/min
Weight: 2050 Kg
Length: 4800 mm
Width: 1491 mm
Height: 1916 mm
Feeding height: 1324 mm
Maximum aggregate size: 16 mm

P720 Piston Pump – Stage V Engine, Optimized Consumption and Ergonomic Control

General Description

The P720 is equipped with brand-new, clean, and efficient engine technology that meets all requirements of the applicable Stage V emission standard.

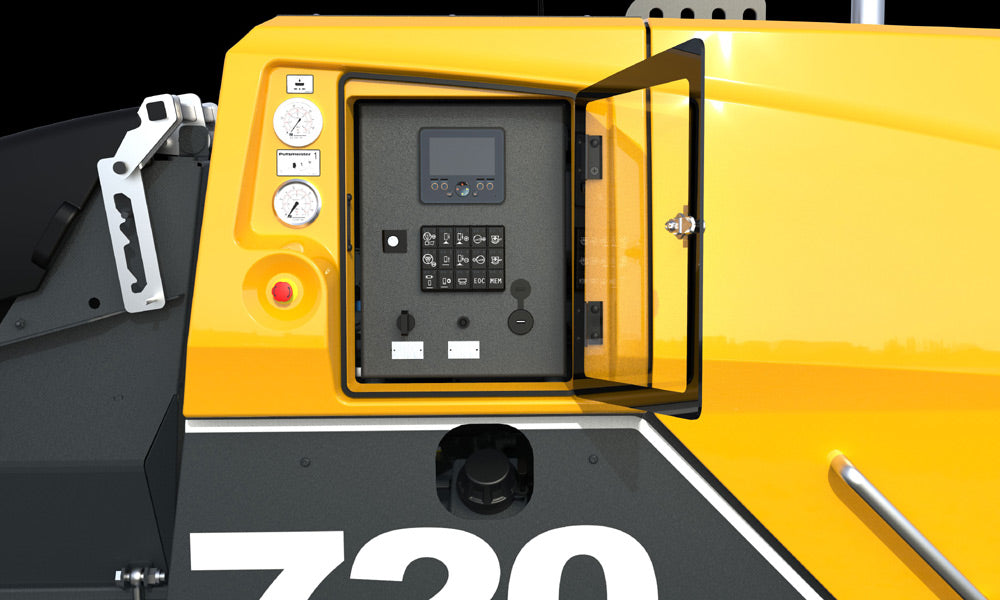

The machine includes a new, ergonomic central control unit with an intuitive keyboard positioned on the right side for simple operation and good control during use.

Fuel consumption is optimized with the Ergonic® Output Control (EOC) system, and the design is built for stability, easier maintenance, and reduced service requirements.

Key Benefits

Clean and efficient engine, compliant with Stage V emission standards.
Optimized fuel consumption with Ergonic® Output Control (EOC).
Ergonomic control unit, with intuitive keyboard on the right side.
Large hopper of 9.9 ft (280 l) with rubber collar and protective grate.
Extremely robust piston pump, for demanding use.
Support legs for stability during operation.
More accessible maintenance and reduced service requirements with maintenance-free components.
Made in Germany.

Features and Specifications

Feature	Detail
Model	P720
Engine technology	Brand-new, clean and efficient
Emission standard	Stage V
Consumption optimization	Ergonic® Output Control (EOC)
Control unit	New, ergonomic, intuitive keyboard on the right side
Hopper	9.9 ft (280 l), rubber collar, protective grate
Pump	Extremely robust piston pump
Stability	Support legs
Maintenance	Improved accessibility to maintenance points; reduced service requirements with maintenance-free components
Equipment	Complete standard equipment
Country of manufacture	Germany

How to use the product

Position the machine on a stable surface and use the support legs for stability.
Operation is performed from the central control unit with an intuitive keyboard on the right side.
Use the Ergonic® Output Control (EOC) system for optimized fuel consumption, depending on work requirements.

Order the P720 now and enjoy optimized consumption and ergonomic control in use.

Hopper capacity: 250 l

Hopper capacity with rubber collar: 280 l

Delivery rate (theoretical): 321 m3/h

Maximum pressure: 80 bar

Pumping distance: up to 300 m horizontal and up to 100 m vertical

Shotcreting (fine concrete spraying): up to 100 m horizontal and up to 80 m vertical

Piston pump: 2 cylinders, hydraulic

Piston stroke: 700 mm

Delivery cylinder diameter: 150 mm

Engine: 3cylinder Deutz Diesel with turbocharger Stage V

Power: 44.5 kW / 59.6 HP
