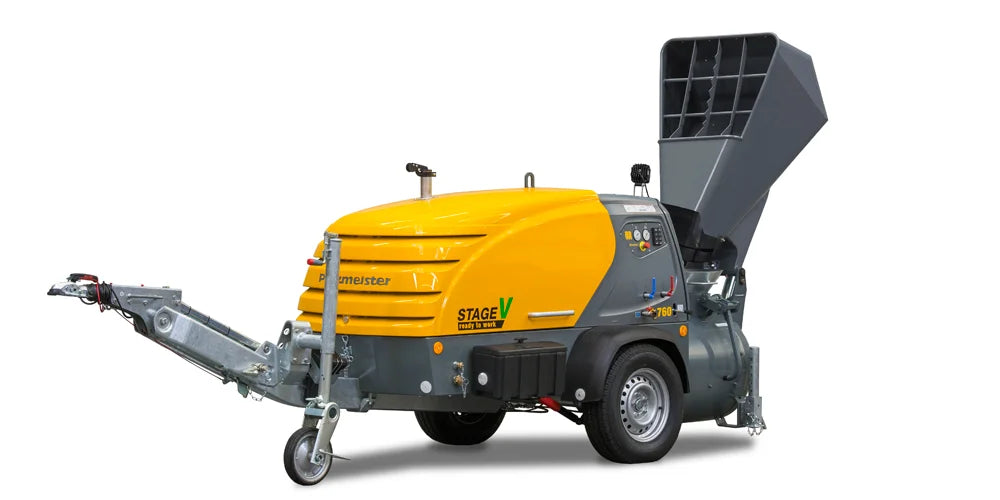

Putzmeister Mixokret M760 DHBS STAGE V Green Efficiency screed pump with feeder + scraper

Disponibil: limited stock

426.400 00 Lei

Cantitate

Beneficii

Technical data
Drive - DEUTZ 3-cylinder diesel engine 44.5 kW (STAGE V emission level) with turbocharger,
Compressor - 4.8 m³/min,
Control pressure - 8 bar,
Mixing vessel with central outlet - 260 l, useful capacity 200 l,
Road approved up to -80 km/h,
Tank capacity =70 l,
Filling height - 400 mm,
Maximum grain size - 16 mm.
Dimensions (LxWxH) - 5075x1480x2431 mm.

M760 STAGE V GREEN EFFICIENCY – Screed conveying up to 190 m and simple operation with color display

General description

M760 STAGE V GREEN EFFICIENCY is designed for conveying screed over long distances, up to 190 m horizontally and 135 m vertically.

Operation is extremely simple and efficient thanks to the keypad with colored LED displays and the modern color display in the control cabinet. Troubleshooting and service execution menus contribute to increased availability.

The 3-cylinder DEUTZ diesel engine with turbocharging, compliant with the STAGE V emission standard, offers maximum power and efficiency, up to 44.5 kW.

The integrated diesel particulate filter cleans exhaust gases and helps protect the environment. Additionally, the machine's performance management allows for higher delivery capacity or fuel savings.

Key benefits

Screed conveying up to 190 m horizontally and 135 m vertically.
Simple operation with keypad and colored LED displays.
Modern color display in the control cabinet for clear control.
Troubleshooting and service menus for increased availability.
DEUTZ Stage V diesel engine, 3 cylinders, turbocharged, with 44.5 kW power.
Integrated diesel particulate filter for cleaner exhaust gases.
Performance management for higher capacity or fuel savings.
Hydraulic mixer with overload protection and reverse operation.

Features and specifications

Feature	Detail
Model	M760 STAGE V GREEN EFFICIENCY
Screed conveying (horizontal)	Up to 190 m
Screed conveying (vertical)	Up to 135 m
Control interface	Keypad with colored LED displays and modern color display in the control cabinet
Menus	Troubleshooting and service execution for increased availability
Engine	DEUTZ diesel, 3 cylinders, turbocharged
Emission standard	STAGE V
Power	44.5 kW
Diesel particulate filter	Integrated, cleans exhaust gases
Performance management	Higher delivery capacity or fuel savings
Mixer	Hydraulic, with overload protection and reverse operation
Weight	1900 kg

How to use the product

Use the control cabinet with color display and the keypad with colored LEDs for operation and control.
Access the troubleshooting and service menus for checks and interventions, when necessary.
Use performance management to choose between higher delivery capacity or fuel savings, depending on the job.

Order now the M760 STAGE V GREEN EFFICIENCY and enjoy efficient screed conveying and simple operation with modern control.

Technical data

Drive DEUTZ 3-cylinder diesel engine 44.5 kW (emission level STAGE V) with turbocharger,

Compressor 4.8 m³/min,

Control pressure 8 bar,

Mixing vessel with central discharge 260 l, usable capacity 200 l,

Road approved up to 80 km/h,

Tank capacity =70 l,

Filling height 400 mm,

Maximum grain size 16 mm.

Dimensions (LxWxH) 5075x1480x2431 mm.
