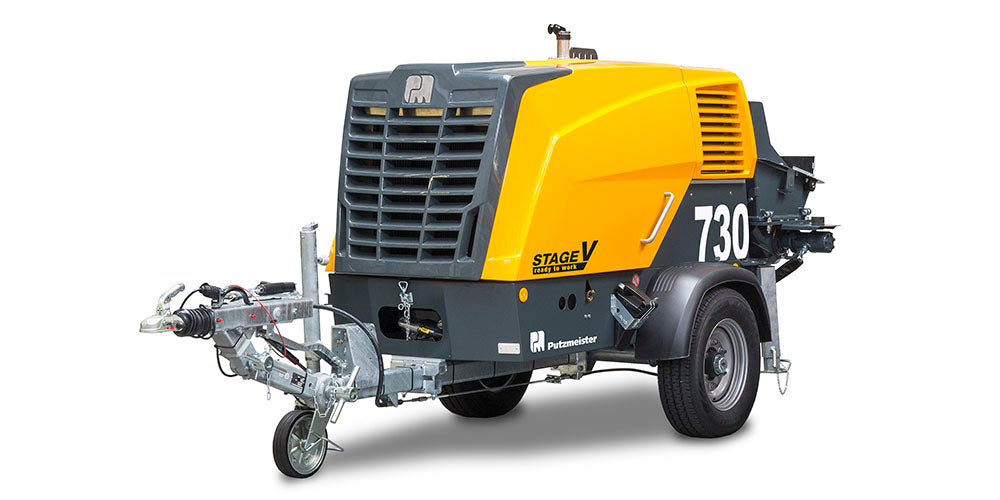

Putzmeister P 730 TD Stage V Concrete Pump

Disponibil: limited stock

518.960 00 Lei

Cantitate

Beneficii

Hopper capacity 300 l
Hopper capacity with rubber collar -360 l
Delivery rate (theoretical) -3-30 m3/h
Maximum pressure -55 Bar
Pumping distance -up to 300 m horizontally and up to 100 m vertically
Shotcreting (pressure spraying of fine concrete) up to -100 m horizontally and up to 80 m vertically
Piston pump -2 cylinders, hydraulic
Delivery cylinder diameter -180 mm
Engine -3-cylinder Deutz Diesel with turbocharging Stage -V
Power -55.4 kW / 74.29 HP
Drive cylinder diameter -80/45 mm
Piston stroke -700 mm
Maximum number of strokes -29 strokes/min
Weight -2450 Kg
Length -4810 mm
Width -1592 mm
Height -1983mm
Feeding height -1340 mm
Maximum aggregate size -32 mm
Noise level -113 dB /> 85 dB
Chassis -2500 kg

Piston Pump P 730 – powerful compact pump, optimized consumption and Stage V emissions

General description

The P 730 piston pump is a compact concrete conveying solution, designed for high delivery rates and low fuel consumption. The engine drives a variable-flow hydraulic pump group, which develops the necessary power to operate the pump pistons and the concrete distribution mechanism.

The concrete flow is variable, depending on the variation of the hydraulic pump flow, thus obtaining a flow rate from 3 m³/h to 30 m³/h. The two pumping pistons alternately draw from a specially designed receptacle (for easy concrete flow) and discharge the concrete into the delivery pipe or hose.

The equipment has automatic acceleration, contributing to a low fuel consumption with a minimum of 10–15% compared to similar models on the market. The engine is officially tested and certified according to Regulation (EU) 2016/1628 and complies with the Stage V emissions standard.

Considered the most powerful compact pump in its category, the P 730 incorporates state-of-the-art technologies and is easy to use, with a well-thought-out design. In addition, it is easier to maintain and requires less maintenance than ever before.

Main benefits

Optimized fuel consumption and automatic acceleration for work efficiency.
Variable delivery rate of 3–30 m³/h depending on the hydraulic pump flow.
Stage V engine, certified according to Regulation (EU) 2016/1628, without harm to the environment.
Ideal for conveying fine concrete up to 32 mm (1.5") and for working with shotcrete.
More power and a higher delivery rate, in a compact design.
New, ergonomic central control unit with intuitive keypad on the right side.
Easier maintenance and reduced service requirements through the use of maintenance-free components.
Made in Germany.

Features and specifications

Feature	Detail
Model	Piston Pump P 730
Concrete flow	Variable: 3 m³/h – 30 m³/h
Maximum aggregate size	Up to 1.5" (32 mm)
Applications	Fine concrete conveying; shotcrete work
Hydraulic system	Variable flow hydraulic pump group
Piston feed	Two pistons, alternate feed from specially designed receptacle
Fuel consumption	Minimum 10–15% lower compared to similar models
Emissions	Stage V
Engine certification	Official tests according to Regulation (EU) 2016/1628
Control	Optimized consumption with Ergonic® Output Control (EOC)
Control unit	New, ergonomic, with intuitive keypad on the right side
Hopper	12.7 ft (360 l) with rubber collar and protective grille
Stability	Support legs
Maintenance	Improved accessibility to maintenance points; reduced service requirements
Availability	Available with Skid and 45 kW electric motor
Country of manufacture	Germany

How to use the product

Ensure concrete supply to the specially designed receptacle for easy flow.
Use the equipment for pumping and conveying in pipe or hose, with variable flow depending on the hydraulic pump settings.
Monitor operation and optimize consumption using the Ergonic® Output Control (EOC) system, according to delivery needs.

Order now the Piston Pump P 730 and enjoy high delivery rates and optimized consumption for efficient work.

Hopper capacity 300 l

Hopper capacity with rubber clamping collar 360 l

Delivery rate (theoretical) 3-30 m3/h

Maximum pressure 55 Bar

Pumping distance up to 300 m horizontally and up to 100 m vertically

Shotcreting (pressure spraying of fine concrete) up to 100 m horizontally and up to 80 m vertically

Piston pump 2 cylinders, hydraulic

Delivery cylinder diameter 180 mm

Engine 3-cylinder Deutz Diesel with turbocharging Stage -V

Power 55.4 kW / 74.29 hp

Drive cylinder diameter 80/45 mm
