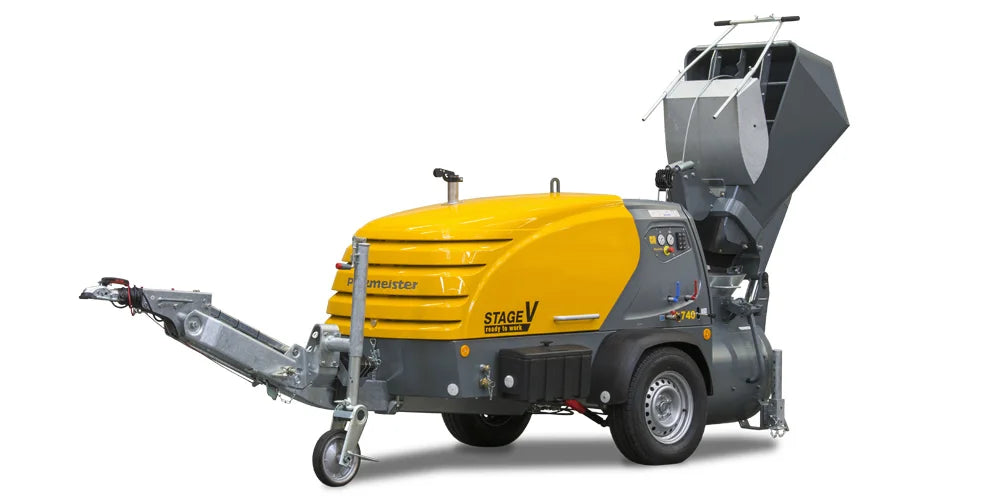

Putzmeister Mixokret M740 DHBS STAGE V screed pump feeder + scraper
- DEUTZ 3-cylinder diesel engine with turbocharger 36.4 kW (STAGE V emission level),
- Compressor - 4.35 m³/min,
- Control pressure - 8 bar,
- Mixing vessel with central discharge - 260 l, usable capacity 200 l,
- Flow rate - 5 m³/h,
- Delivery pressure - 8 bar,
- Filling height - 400 mm,
- Maximum grain size - 16 mm, – braked chassis,
- Road approved up to - 80 km/h,
- Large diesel tank with - 70 l.
- Dimensions (LxWxH) - 5075x1480x2431 mm,
- Weight - 1900 kg.
M740 STAGE V Screed Pump – Efficient pumping up to 180m and simple control with a color display
General Description
The robust M740 STAGE V screed pump is designed for pumping wet screed over long distances, up to 180m horizontally and 90m vertically.
Operation is extremely simple and efficient thanks to the keypad with colored LED displays and the modern color display in the control box. Troubleshooting and service feasibility menus contribute to increased availability.
The mixer is equipped with overload protection and reverse function, and the DEUTZ diesel engine provides high power, complying with the STAGE V emission standard.
Key Benefits
- Wet screed pumping up to 180m horizontally and 90m vertically.
- Simple operation with keypad and colored LED displays.
- Modern color display in the control box for visibility and control.
- Troubleshooting and service feasibility menus for increased availability.
- Mixer with overload protection and reverse function.
- DEUTZ diesel engine with a large 70 l tank.
- 36.4 kW power for efficient work.
- Complies with STAGE V emission standard.
Features and Specifications
| Feature | Detail |
|---|---|
| Model | M740 STAGE V |
| Type | Robust screed pump (wet screed) |
| Pumping (horizontal) | Up to 180 m |
| Pumping (vertical) | Up to 90 m |
| Operating interface | Keypad with colored LED displays and modern color display |
| Control | Modern color display in the control box |
| Menus | Troubleshooting and service feasibility for increased availability |
| Mixer | Overload protection and reverse function |
| Engine | DEUTZ Diesel |
| Tank | 70 liters |
| Power | 36.4 kW |
| Emission standard | STAGE V |
How to use the product
- Control the operation from the control box, using the modern color display and the keypad with colored LEDs.
- Use the troubleshooting and service feasibility menus for checks and interventions, when necessary.
- Use the mixer with overload protection and reverse function according to work requirements.
Order now the M740 STAGE V Screed Pump and enjoy long-distance pumping and simple operation with modern control.
