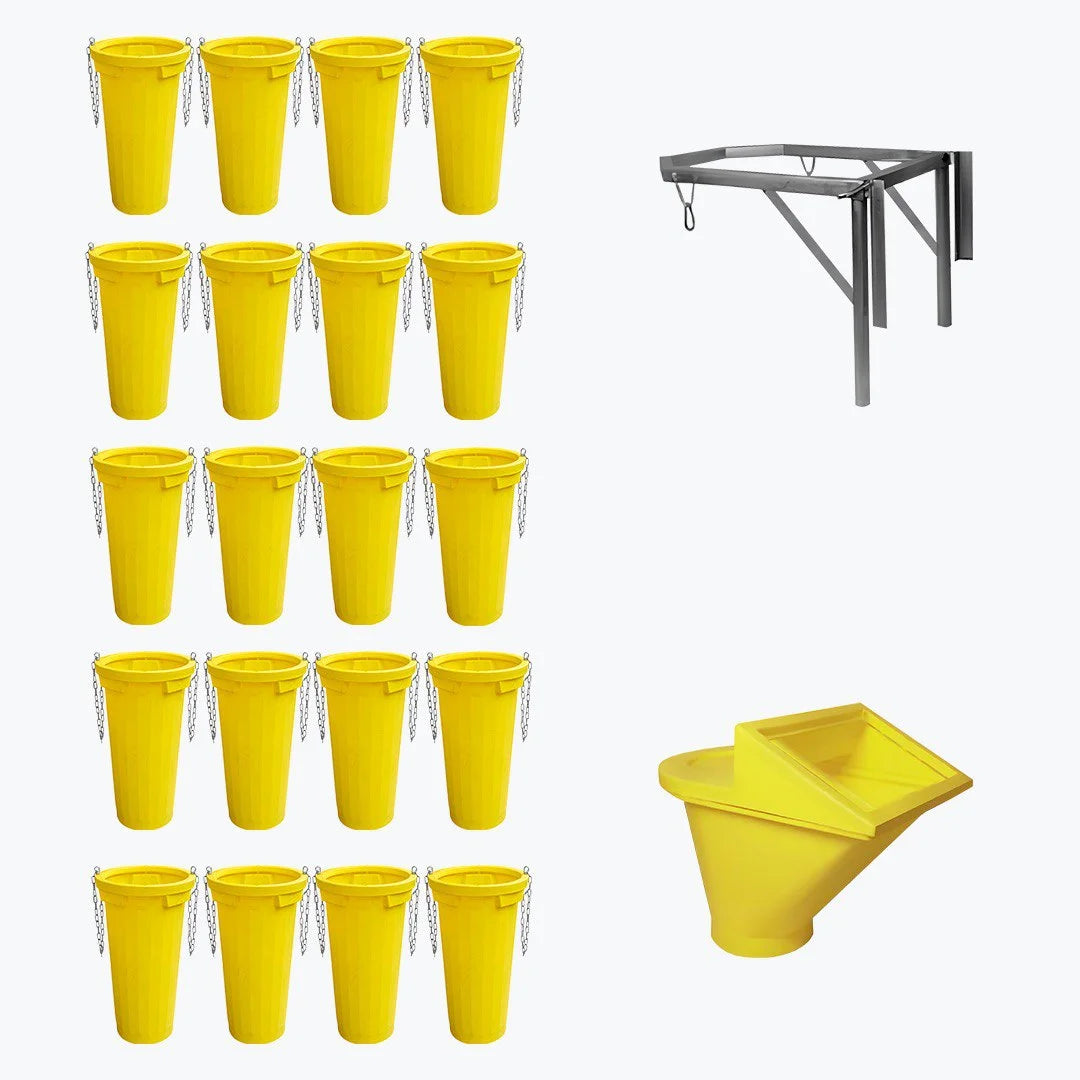

Set of Ducting for Imer 20 Waste Tubes, 1 Support Hopper, 1 Charging Hopper with separator
- After placing the order, we will confirm the shipping cost via email, which will be calculated based on your location.
Tekcnoplast Construction Waste Chute – set of 20 tubes, support, and hopper with separator, Made in Italy
General Description
The Tekcnoplast construction waste chute set, 100% manufactured in Italy, is designed for the controlled discharge of rubble and waste directly from height on construction sites. The package contains discharge tubes, a support for the loading hopper, and a loading hopper with a separator, forming a complete and efficient system.
The yellow-colored discharge tubes, with optimized diameters and length, allow the formation of a stable discharge column, so that waste is safely directed to the discharge point. The weight of each tube ensures good stability in use.
The loading hopper support, made of galvanized steel and equipped with an adjustable frame, provides secure support for the hopper and for the beginning of the chute column. The loading hopper with separator facilitates system feeding and contributes to better waste flow management.
The entire set is 100% manufactured in Italy by Tekcnoplast SRL, guaranteeing quality, durability, and reliability for professional use on construction sites.
Main Benefits
- Complete set of waste chutes for construction sites.
- Includes 20 discharge tubes, 1 hopper support, and 1 loading hopper with separator.
- Product 100% manufactured in Italy by Tekcnoplast SRL.
- Yellow color for high visibility in the work area.
- Galvanized steel support, with adjustable frame, for stability and adaptability.
- Practical solution for discharging rubble and waste from height.
Features and Specifications
TE0001119 Chute Set (20 pieces)
| Feature | Detail |
|---|---|
| Product Code | TE0001119 |
| Number of discharge tubes | 20 pieces |
| Outer top diameter | 590 mm |
| Inner top diameter | 500 mm |
| Inner bottom diameter | 380 mm |
| Tube length | 1060 mm |
| Tube color | Yellow |
| Tube weight | 8 kg |
TE0001121 Hopper Support
| Feature | Detail |
|---|---|
| Product Code | TE0001121 |
| Purpose | Support for loading hopper |
| Material | Galvanized steel |
| Frame type | Adjustable frame |
| Country of manufacture | Italy – Tekcnoplast SRL |
TE0006226 Loading Hopper with Separator
| Feature | Detail |
|---|---|
| Product Code | TE0006226 |
| Loading opening size | 830 × 430 mm |
| Inner bottom diameter | 390 mm |
| Height | 650 mm |
| Length | 980 mm |
| Width | 740 mm |
| Hopper color | Yellow |
| Hopper weight | 7 kg |
| Country of manufacture | Italy – Tekcnoplast SRL |
The Tekcnoplast construction waste chute set is 100% manufactured in Italy and offers a complete, reliable, and efficient solution for construction waste management on site.
How to use the product
- Position and secure the loading hopper support in the area where waste will be discharged.
- Mount the loading hopper with separator on the support, aligning the loading opening with the area from which rubble is being discharged.
- Connect the discharge tubes to each other, starting from the loading hopper, to form the discharge column to the discharge point.
- Check the stability of the assembly and the connections of all components before starting waste discharge.
Order now the Tekcnoplast construction waste chute set and enjoy a complete, efficient, and Italian-made system for waste management on site.
