Fiac Pumping Group Type Ab598 for Compressor
slide 1 to 3 of 3
Fiac Pumping Group Type Ab598 for Compressor
Fiac Pumping Group Type Ab598 for Compressor
Fiac Pumping Group Type Ab598 for Compressor
FIAC

Fiac Pumping Group Type Ab598 for Compressor

Product SKU: AB598
Greutate 17 kg
euplatesc dekstop
Available:
3.690,00 lei
euplatesc mobile
  • Description

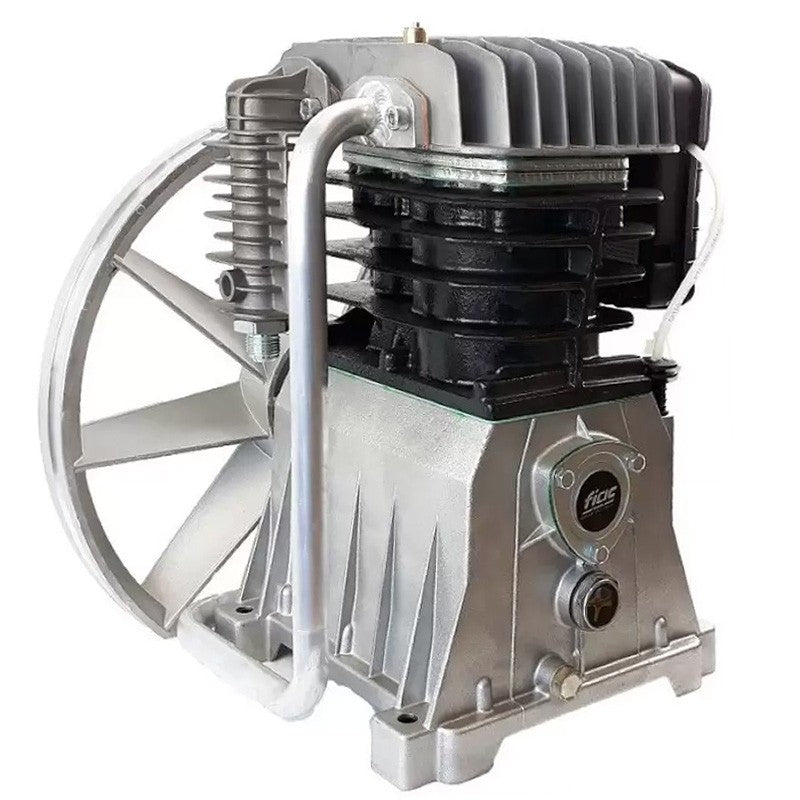

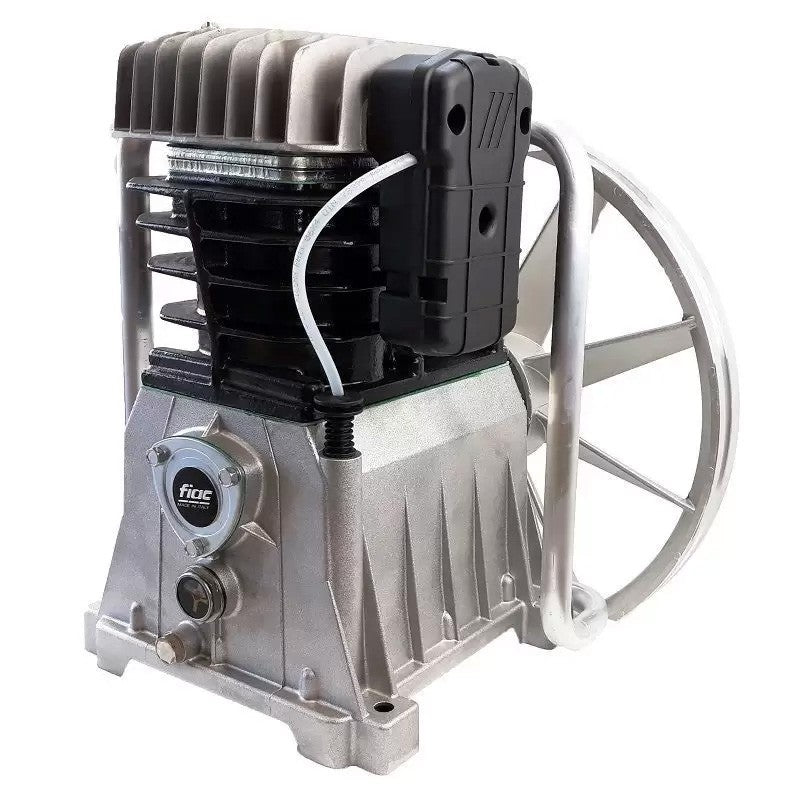

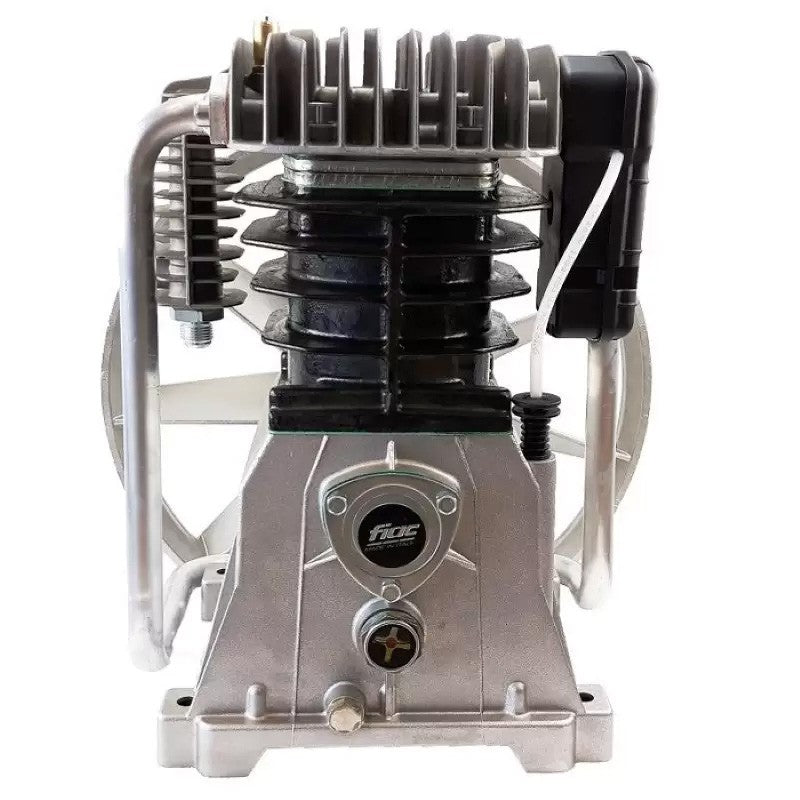

Fiac AB598 is a professional pump with two pistons driven by a trapezoidal belt.

  • The pump is delivered with a pulley (400mm). The pump has an improved efficiency, a robust construction.

  • The oil sump and cylinder head are made of aluminum, the cylinders are made of cast iron with cooling fins.

  • The pump pistons are made of INOX, and are equipped with 3 segments.

  • Lubrication is done with oil (the pump is delivered with synthetic oil in the bathroom).

  • The valve plate is made of cast iron, with INOX valves.


It is delivered loaded with synthetic oil in the oil pan.

  • Maximum pressure: 10 bar

  • Intake air flow rate: 598 l/min (35.9 m³/h)

  • Recommended engine power: 4 kW / 5.5 HP

  • Speed: 1270 rpm

  • Number of cylinders: 2

  • Number of compression stages: 2

  • Lubrication: with oil

  • Pulley: 400 mm x 3V (two belt channels)

  • Drive: V-belt

  • Dimensions: 400 x 330 x 440mm (with pulley)

  • Weight: 17 kg

Weight 17 kg
Dimensions 45 × 45 × 55 cm
Brand FIAC
